Ford Escape 2020-2024 Service Manual / Electrical / Electronic Feature Group / Perimeter Anti-Theft Alarm / Diagnosis and Testing - Perimeter Anti-Theft Alarm

Ford Escape: Perimeter Anti-Theft Alarm / Diagnosis and Testing - Perimeter Anti-Theft Alarm

Diagnostic Trouble Code (DTC) Chart

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).


  Diagnostic Trouble Code Chart


Module   DTC Description Action
  BCM B1305:01 Hood Switch: General Electrical Failure   GO to Pinpoint Test C
  BCM B1305:15 Hood Switch: Circuit Short To Battery or Open   GO to Pinpoint Test C

Global Customer Symptom Code (GCSC) Chart

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).


Symptom Action
Safe & Secure > Anti-Theft > Control > Inoperative GO to Pinpoint Test B
Safe & Secure > Anti-Theft > Control > Inoperative GO to Pinpoint Test D
Safe & Secure > Anti-Theft > Performance > Inoperative GO to Pinpoint Test A

Symptom Chart: Anti-Theft - Perimeter

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Condition Actions
No horn output during alarm activation DIAGNOSE the inoperative horn
REFER to: Horn (413-06 Horn, Diagnosis and Testing).
The alarm system does not activate from an unauthorized entry at a door DIAGNOSE the courtesy lamps not illuminating with a door open
REFER to: Interior Lighting (417-02 Interior Lighting, Diagnosis and Testing).
The alarm system does not activate from an unauthorized entry at the liftgate DIAGNOSE the courtesy lamps not illuminating with a door open
REFER to: Interior Lighting (417-02 Interior Lighting, Diagnosis and Testing).
The alarm system does not activate from an unauthorized entry at the hood   GO to Pinpoint Test A
The alarm system does not arm or no turn signals flash confirmation   GO to Pinpoint Test B
The alarm system falsely activates   GO to Pinpoint Test D

Pinpoint Tests


PINPOINT TEST A: THE ALARM SYSTEM DOES NOT ACTIVATE FROM AN UNAUTHORIZED ENTRY AT THE HOOD

Refer to Wiring Diagrams Cell 117 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Perimeter Anti-Theft Alarm - System Operation and Component Description (419-01A Perimeter Anti-Theft Alarm, Description and Operation).

Possible Sources

  • Wiring, terminals or connectors
  • Hood latch
  • BCM

Visual Inspection and Pre-checks

  • Inspect the hood latch for damage.
A1 MONITOR THE BCM (BODY CONTROL MODULE) HOOD AJAR SWITCH (HOOD_SW) PID (PARAMETER IDENTIFICATION)
  • Ignition ON.
  • Using a diagnostic scan tool, view the BCM Parameter Identifications (PIDs).

  • Access the  BCM  and monitor the  HOOD_SW  PID

  • Disconnect: Hood Ajar Switch C127.

Does the PID read AJAR when the switch is disconnected?
Yes INSTALL a new hood latch.
REFER to: Hood Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
No GO to A2

A2 CHECK THE HOOD AJAR SWITCH INPUT CIRCUIT FOR A SHORT TO GROUND
  • Ignition OFF.
  • Disconnect: BCM C2280E.
  • Measure:
    Click to display connectors
    Positive Lead Measurement / Action Negative Lead
      C127-2   Ground

Is the resistance greater than 10,000 ohms?
Yes GO to A3
No REPAIR the circuit.

A3 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins – install new terminals/pins
    • pushed-out pins – install new pins as necessary
  • Reconnect all BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB , GSB , SSM , or FSA . If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM .
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST B: THE ALARM SYSTEM DOES NOT ARM OR NO TURN SIGNALS FLASH CONFIRMATION

Refer to Wiring Diagrams Cell 95 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Perimeter Anti-Theft Alarm - System Operation and Component Description (419-01A Perimeter Anti-Theft Alarm, Description and Operation).

Possible Sources

  • Door ajar switch input
  • Hood ajar switch input
  • Liftgate ajar switch output
  • Turn signal output
  • RKE transmitter concern
  • BCM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

B1 CHECK FOR BCM (BODY CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE)

NOTE: DTC B1305:01 or B1305:15 sets if the hood is open. Make sure the hood is closed prior to running the self-test.

  • Ignition ON.
  • Using a diagnostic scan tool, perform the BCM self-test.

Is DTC B1305:01 or B1305:15 present?
Yes GO to Pinpoint Test C
No GO to B2

B2 CHECK THE DOOR AND LIFTGATE AJAR SWITCH INPUTS
  • Close all the doors and liftgate.
  • Observe the IPC .

Does the IPC indicate a door or the liftgate is ajar?
Yes
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
No GO to B3

B3 VERIFY THE HAZARD FLASHER LAMP OPERATION
  • Ignition OFF.
  • Activate the hazard flasher lamp function and observe the turn signals.

Do all the turn signals flash on and off?
Yes GO to B4
No DIAGNOSE the inoperative turn signals.
REFER to: Turn Signal and Hazard Lamps (417-01 Exterior Lighting, Diagnosis and Testing).

B4 CHECK THE RKE (REMOTE KEYLESS ENTRY) TRANSMITTER FUNCTION
  • Using the RKE transmitter, lock and unlock the doors.

Do the doors lock and unlock?
Yes GO to B5
No DIAGNOSE the inoperative RKE transmitter.
REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).

B5 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all the BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins – install new terminals/pins
    • pushed-out pins – install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB , GSB , SSM , or FSA . If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM .
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST C: B1305:01, B1305:15

Refer to Wiring Diagrams Cell 117 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Perimeter Anti-Theft Alarm - System Operation and Component Description (419-01A Perimeter Anti-Theft Alarm, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM B1305:01 Hood Switch: General Electrical Failure Sets when the BCM detects an open from the hood ajar switch input during a self-test. This DTC also sets if the self-test is carried out with the hood open.
BCM B1305:15 Hood Switch: Circuit Short To Battery Or Open Sets when the BCM detects a short to battery or open from the hood ajar switch input during a self-test.

Possible Sources

  • Wiring, terminals or connectors
  • Hood latch
  • BCM

Visual Inspection and Pre-checks

  • Inspect the hood latch for damage.

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

C1 CHECK THE HOOD AJAR SWITCH
  • Disconnect: Hood Ajar Switch C127.
  • Ignition ON.
  • Connect:
    Click to display connectors
    Positive Lead Measurement / Action Negative Lead
      C127-2   C127-1
  • Using a diagnostic scan tool, perform the BCM self-test.

Is DTC B1305:01 or B1305:15 still present?
Yes REMOVE the fused jumper wire. GO to C2
No REMOVE the fused jumper wire. INSTALL a new hood latch.
REFER to: Hood Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

C2 CHECK THE HOOD AJAR SWITCH GROUND CIRCUIT FOR AN OPEN
  • Connect a fused jumper wire:
    Click to display connectors
    Positive Lead Measurement / Action Negative Lead
      C127-2   Ground
  • Using a diagnostic scan tool, perform the BCM self-test.

Is DTC B1305:01 or B1305:15 still present?
Yes REMOVE the fused jumper wire. GO to C3
No REMOVE the fused jumper wire. REPAIR the circuit.

C3 CHECK THE HOOD AJAR SWITCH FOR A SHORT TO VOLTAGE
  • Disconnect BCM C2280E .
  • Measure:
    Click to display connectors
    Positive Lead Measurement / Action Negative Lead
      C127-2   Ground

Is any voltage present?
Yes REPAIR the circuit in question.
No GO to C4

C4 CHECK THE HOOD AJAR SWITCH INPUT CIRCUIT FOR AN OPEN
  • Ignition OFF.
  • Measure:
    Click to display connectors
    Positive Lead Measurement / Action Negative Lead
      C127-2   C2280E-26

Is the resistance less than 3 ohms?
Yes GO to C5
No REPAIR the circuit.

C5 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all the BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins – install new terminals/pins
    • pushed-out pins – install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB , GSB , SSM , or FSA . If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM .
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST D: THE ALARM SYSTEM FALSELY ACTIVATES

Refer to Wiring Diagrams Cell 117 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Perimeter Anti-Theft Alarm - System Operation and Component Description (419-01A Perimeter Anti-Theft Alarm, Description and Operation).

Possible Sources

  • Panic Alarm Feature
  • Door Ajar
  • Hood Ajar
D1 MONITOR THE BCM (BODY CONTROL MODULE) ALARM_EVT PID (PARAMETER IDENTIFICATION) S
  • Ignition ON.
  • Using a diagnostic scan tool, view the BCM Parameter Identifications (PIDs).

  • Access the  BCM  and monitor the  ALARM_EVT_1  PID

  • Access the  BCM  and monitor the  ALARM_EVT_2  PID

  • Access the  BCM  and monitor the  ALARM_EVT_3  PID

  • Access the  BCM  and monitor the  ALARM_EVT_4  PID


Does the PID s read PANIC, DOOR AJAR, HOOD AJAR?
Yes If PANIC is causing the false alarm event, then the system is operating correctly at this time. REFER the customer to the PANIC ALARM in the Owner's Literature
If DOOR AJAR is causing the false alarm event,
REFER to: Interior Lighting (417-02 Interior Lighting, Diagnosis and Testing). If HOOD AJAR is causing the false alarm event, GO to Pinpoint Test C
No The system is operating correctly at this time. The concern may have been a valid PATS key read was NOT received when the ignition transitioned to RUN.


    Description and Operation - Perimeter Anti-Theft Alarm - System Operation and Component Description

    S..

    Passive Anti-Theft System (PATS)

    ..

    Other information:

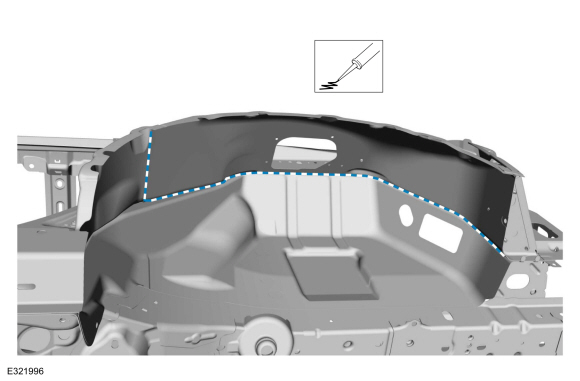

    Ford Escape 2020-2024 Service Manual: Removal and Installation - Quarter Panel
