Ford Escape: Wipers and Washers / Washers
Washer Precautions
WARNING: If you operate your
vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.
Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.
Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.
Using the Windshield Washer

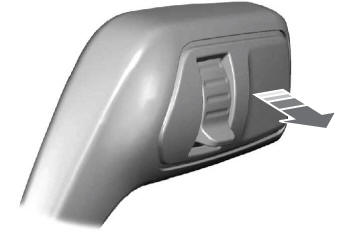

Pull the lever toward you to
operate the windshield washer.
Note: A courtesy wipe occurs a short time
after the wipers stop to clear any remaining
washer fluid when switched on.
Switching the Courtesy Wipe On and Off
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Wipers.
- Switch Courtesy Wipe on or off.
Using the Rear Window Washer

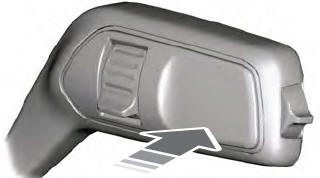

Push the lever away from you to operate
the rear window washer.
Note: A courtesy wipe occurs a short time
after the wipers stop to clear any remaining
washer fluid when switched on.

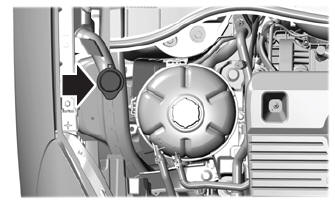

Adding Washer Fluid

Checking the Wiper Blades
Run the tip of your fingers over the edge of
the blade to check for roughness.
Replacing the Front Wiper Blades
Lift the wiper arm and then press the
wiper blade locking buttons together...
Wipers and Washers – Warning Lamps
Illuminates when the windshield
washer fluid is low.
Wipers and Washers – Frequently Asked Questions
Why are there streaks and smears on
the windshield?
The wiper blades could be dirty, worn
or damaged...
