Ford Escape: Intake Air Distribution and Filtering / Removal and Installation - Air Cleaner Outlet Pipe
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
-

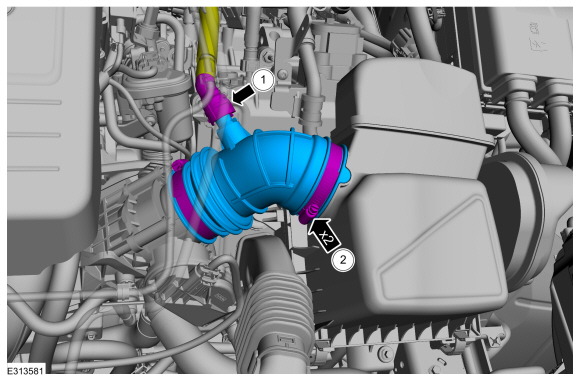

Disconnect the quick release coupling.
Refer to: Quick Release Coupling (310-00B Fuel System - General
Information - 2.0L EcoBoost (177kW/240PS) – MI4, General Procedures).
-
Loosen the clamps and remove the hose.
Torque:
48 lb.in (5.4 Nm)
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Loosen the clamp and position aside the air cleaner outlet pipe...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the following items:
Dislodge and position aside the air cleaner intake pipe...
