Ford Escape: Handles, Locks, Latches and Entry Systems / Removal and Installation - Ignition Lock Cylinder
Special Tool(s) /
General Equipment
Removal
Non-functional lock cylinder
NOTE:
For non-functional ignition lock cylinders, replace the ignition lock cylinder housing.
-
Remove the ignition lock cylinder housing.
Refer to: Ignition Lock Cylinder Housing (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).
Functional lock cylinder
NOTE:
Repair individual lock cylinders by discarding the
inoperative lock cylinder and building a new lock cylinder using the
appropriate lock repair service kit. The lock repair service kit
includes a detailed instruction sheet to build the new lock to match the
key cut pattern for the vehicle, thus allowing for single point
replacement without needing to replace or reprogram other locks or keys.
-
Remove the PATS Transceiver.
Refer to: Passive Anti-Theft System (PATS) Transceiver (419-01B Passive Anti-Theft System (PATS), Removal and Installation).
-

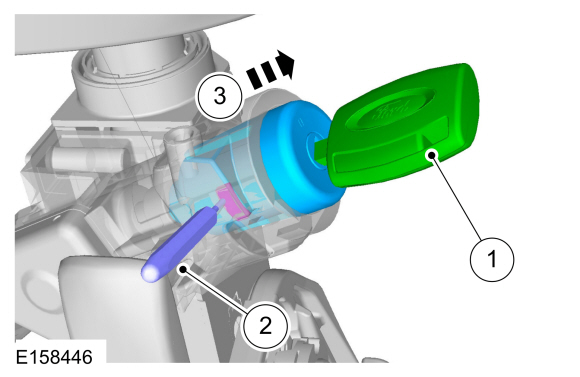

Remove the ignition lock cylinder.
-
Insert the ignition key and position the ignition lock cylinder to the ACC position.
-
Using a screwdriver, press the ignition lock cylinder release pin through the access hole.
Use the General Equipment: Flat-Bladed Screwdriver
-
Pulling the ignition lock cylinder outward, remove the ignition lock cylinder.
Installation
-
To install, reverse the removal procedure.
-
Install the ignition lock cylinder.
-
Make sure the ignition lock cylinder is in the ACC position.
-
Insert the ignition lock cylinder into the ignition
lock cylinder housing located on the steering column. Make sure to align
the locking pin with the locking pin access hole.
-
Rotate the ignition key through all lock cylinder positions to check for correct operation
