Ford Escape: Seatbelt Systems / Removal and Installation - Front Seatbelt Buckle
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Driver seat shown, passenger seat similar.
-
Remove the front seat.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
-

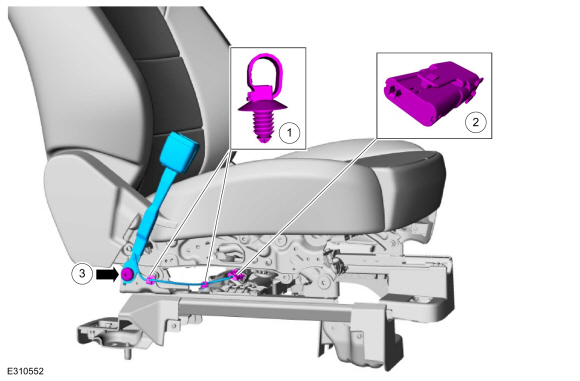

Remove the front seatbelt buckle.
-
Detach the wiring harness retainers.
-
Disconnect the electrical connector.
-
Remove the bolt.
Torque:
26 lb.ft (35 Nm)
Installation
NOTE:
During installation, make sure the seatbelt webbing is not
twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt System Functional Tests (501-20A Seatbelt Systems, General Procedures).
Adjustment
NOTE:
Typical D-ring shown, others similar.
If required, remove the necessary trim panel(s).
Fold the seatbelt as indicated...
Removal
WARNING:
The following procedure prescribes critical repair steps
required for correct restraint system operation during a crash. Follow
all notes and steps carefully...
