Ford Escape 2020-2025 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Removal and Installation - Hood Latch Release Handle

Ford Escape: Handles, Locks, Latches and Entry Systems / Removal and Installation - Hood Latch Release Handle

Removal

Remove the hood latch release handle.
1. Rotate the hood latch release handle.
1. NOTE: Do not remove the retaining clip from the hood latch release handle.

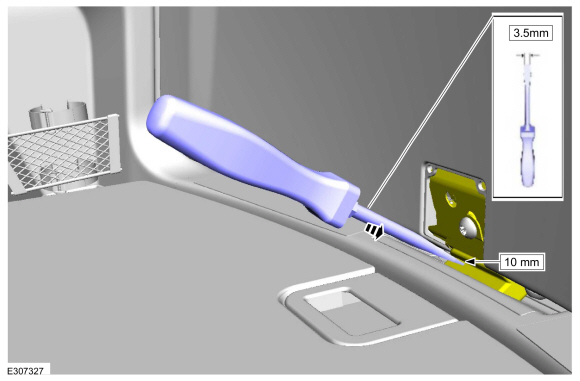

  Release the retaining clip.
1. Remove the hood latch release handle.

Installation

To install, reverse the removal procedure.
