Ford Escape: Body Closures / Diagnosis and Testing - Body Closures

Diagnostic Trouble Code (DTC) Chart

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Diagnostic Trouble Code Chart

Module	DTC	Description	Action
BCM	B11C4:23	Boot/Trunk Close Button: Signal Stuck Low	GO to Pinpoint Test C
BCM	B1219:11	Interior Boot/Trunk Release Switch: Circuit Short To Ground	GO to Pinpoint Test C
BCM	B12E8:23	Liftgate/Tailgate Control/Release Switch: Signal Stuck Low	GO to Pinpoint Test C
BCM	B144C:23	Tailgate/Liftgate/Boot/Trunk Outer Handle Switch: Signal Stuck Low	GO to Pinpoint Test C
BCM	B1495:02	Hands Free Liftgate/Decklid Input Sensor: General Signal Failure	GO to Pinpoint Test J
BCM	B1495:08	Hands Free Liftgate/Decklid Input Sensor: Bus Signal/Message Failures	GO to Pinpoint Test J
BCM	B1495:11	Hands Free Liftgate/Decklid Input Sensor: Circuit Short To Ground	GO to Pinpoint Test J
BCM	B1495:49	Hands Free Liftgate/Decklid Input Sensor: Internal Electronic Failure	GO to Pinpoint Test J
BCM	B1495:55	Hands Free Liftgate/Decklid Input Sensor: Not Configured	GO to Pinpoint Test P
RGTM	B12E8:11	Liftgate/Tailgate Control/Release Switch: Circuit Short To Ground	GO to Pinpoint Test C
RGTM	B144D:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 1: Signal Invalid	GO to Pinpoint Test B
RGTM	B144E:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 2: Signal Invalid	GO to Pinpoint Test B
RGTM	B144F:11	Tailgate/Liftgate/Boot/Trunk Driver Motor: Circuit Short To Ground	GO to Pinpoint Test B
RGTM	B144F:12	Tailgate/Liftgate/Boot/Trunk Driver Motor: Circuit Short To Battery	GO to Pinpoint Test B
RGTM	B144F:13	Tailgate/Liftgate/Boot/Trunk Driver Motor: Circuit Open	GO to Pinpoint Test B
RGTM	B144F:79	Tailgate/Liftgate/Boot/Trunk Driver Motor: Mechanical Linkage Failure	GO to Pinpoint Test B
RGTM	B1451:29	Tailgate/Liftgate/Boot/Trunk Latch Centering Position Switch: Signal Invalid	GO to Pinpoint Test D
RGTM	B1452:11	Tailgate/Liftgate/Boot/Trunk Latch Release Actuator: Circuit Short To Ground	GO to Pinpoint Test A
RGTM	B1452:13	Tailgate/Liftgate/Boot/Trunk Latch Release Actuator: Circuit Open	GO to Pinpoint Test A
RGTM	B1453:29	Tailgate/Liftgate/Boot/Trunk Latch Position Switch: Signal Invalid	GO to Pinpoint Test D
RGTM	B1454:11	Tailgate/Liftgate/Boot/Trunk Left Pinch Strip: Circuit Short To Ground	GO to Pinpoint Test G
RGTM	B1454:13	Tailgate/Liftgate/Boot/Trunk Left Pinch Strip: Circuit Open	GO to Pinpoint Test G
RGTM	B1455:11	Tailgate/Liftgate/Boot/Trunk Right Pinch Strip: Circuit Short To Ground	GO to Pinpoint Test G
RGTM	B1455:13	Tailgate/Liftgate/Boot/Trunk Right Pinch Strip: Circuit Open	GO to Pinpoint Test G
RGTM	B145D:11	Tailgate/Liftgate/Boot/Trunk Power Cinch Striker Motor: Circuit Short To Ground	GO to Pinpoint Test D
RGTM	B145D:12	Tailgate/Liftgate/Boot/Trunk Power Cinch Striker Motor: Circuit Short To Battery	GO to Pinpoint Test D
RGTM	B145D:13	Tailgate/Liftgate/Boot/Trunk Power Cinch Striker Motor: Circuit Open	GO to Pinpoint Test D
RGTM	B1515:77	Tailgate/Liftgate/Boot/Trunk: Commanded Position Not Reachable	GO to Pinpoint Test B
RGTM	B1515:97	Tailgate/Liftgate/Boot/Trunk: Component Or System Operation Obstructed Or Blocked	GO to Pinpoint Test B
RGTM	B1555:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 4: Signal Invalid	GO to Pinpoint Test B
RGTM	B1556:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 3: Signal Invalid	GO to Pinpoint Test B
RGTM	B1557:11	Power Liftgate/Decklid Driver Motor 2: Circuit Short To Ground	GO to Pinpoint Test B
RGTM	B1557:12	Power Liftgate/Decklid Driver Motor 2: Circuit Short To Battery	GO to Pinpoint Test B
RGTM	B1557:13	Power Liftgate/Decklid Driver Motor 2: Circuit Open	GO to Pinpoint Test B
RGTM	C1B14:11	Sensor Supply Voltage A: Circuit Short To Ground	GO to Pinpoint Test B
RGTM	C1B15:11	Sensor Supply Voltage B: Circuit Short To Ground	GO to Pinpoint Test B
RGTM	P0A2F:4B	Drive Motor "A" Over Temperature: Over Temperature	GO to Pinpoint Test B
RGTM	P0A35:4B	Drive Motor "B" Over Temperature: Over Temperature	GO to Pinpoint Test B
RGTM	U0101:87	Lost Communication with TCM: Missing Message	GO to Pinpoint Test K
RGTM	U0140:87	Lost Communication With Body Control Module: Missing Message	GO to Pinpoint Test L
RGTM	U0294:87	Lost Communication With Powertrain Control Monitor Module: Missing Message	GO to Pinpoint Test M
RGTM	U201A:55	Control Module Main Calibration Data: Not Configured	GO to Pinpoint Test Q
RGTM	U2300:56	Central Configuration: Invalid/Incompatible Configuration	GO to Pinpoint Test Q
RGTM	U3000:49	Control Module: Internal Electronic Failure	GO to Pinpoint Test Q
RGTM	U3003:16	Battery Voltage: Circuit Voltage Below Threshold	GO to Pinpoint Test N
RGTM	U3003:17	Battery Voltage: Circuit Voltage Above Threshold	GO to Pinpoint Test O

Global Customer Symptom Code (GCSC) Chart

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Symptom	Action
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Alignment	GO to Pinpoint Test R
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Alignment	GO to Pinpoint Test S
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Alignment	GO to Pinpoint Test T
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Difficult to Close	GO to Pinpoint Test G
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Difficult to Open	GO to Pinpoint Test A
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Poor Fit	GO to Pinpoint Test R
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Poor Fit	GO to Pinpoint Test T
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Power Control	GO to Pinpoint Test B
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Power Control	GO to Pinpoint Test C
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Power Function	GO to Pinpoint Test B
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Power Function	GO to Pinpoint Test D
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Power Function	GO to Pinpoint Test F
Fit/Finish/Body > Body Panels > Liftgate/Hatch > Power Function	GO to Pinpoint Test G
Safe & Secure > Latches/Locks > Trunk/Hatch > Difficult to Open	GO to Pinpoint Test A
Safe & Secure > Latches/Locks > Trunk/Hatch > Sticks/Binds	GO to Pinpoint Test R
Safe & Secure > Latches/Locks > Trunk/Hatch > Sticks/Binds	GO to Pinpoint Test T
Safe & Secure > Remote Entry > Control > Inoperative	GO to Pinpoint Test C
Safe & Secure > Handle/Lever > Liftgate/Hatch > Difficult to Close	GO to Pinpoint Test G

Symptom Chart

Symptom Chart: Power Liftgate

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Condition	Actions
The power liftgate does not operate from a RKE transmitter	DIAGNOSE the inoperative RKE transmitter button. REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).
The power liftgate passive entry feature is inoperative	DIAGNOSE the inoperative liftgate passive entry feature. REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).
The power liftgate does not unlatch	GO to Pinpoint Test A
The liftgate unlatches but the power liftgate is inoperative	GO to Pinpoint Test B
The power liftgate is inoperative from one of the power liftgate control switches	GO to Pinpoint Test C
The power liftgate stops in the secondary latch position	GO to Pinpoint Test D
The power liftgate stops during power open operation	GO to Pinpoint Test R
The power liftgate stops and chimes at the full open position	GO to Pinpoint Test S
The power liftgate reverses during a power close operation	GO to Pinpoint Test E
The power liftgate anti-pinch strip does not stop or reverse the liftgate	GO to Pinpoint Test F
The power liftgate does not power close (power open OK)	GO to Pinpoint Test G
The power liftgate does not power open (power close OK)	GO to Pinpoint Test H
The power liftgate closes (with a continuous chime) immediately after a power open	GO to Pinpoint Test I
The power liftgate hands-free actuation is inoperative	GO to Pinpoint Test J
The power liftgate has excessive noise during operation	GO to Pinpoint Test T

Pinpoint Tests

PINPOINT TEST A: THE POWER LIFTGATE DOES NOT UNLATCH

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM B1452:11	Tailgate/Liftgate/Boot/Trunk Latch Release Actuator: Circuit Short To Ground	Sets when the RGTM detects a short to ground from the liftgate latch release actuator output circuit.
RGTM B1452:13	Tailgate/Liftgate/Boot/Trunk Latch Release Actuator: Circuit Open	Sets when the RGTM detects an open from the liftgate latch release actuator output circuit.

Possible Sources

Fuse
Wiring, terminals or connectors
Communication concern
Liftgate Latch
BJB
RGTM
Undervoltage / Overvoltage

Visual Inspection and Pre-checks

Verify the BJB fuse 41 (30A) is OK
Ensure RGTM is updated to latest software calibration.

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTICE: The following Pinpoint Test uses a test lamp to simulate normal circuit loads. Use only a Rotunda Test Lamp (SGT27000) or 250- 300mA incandescent bulb test lamp. To avoid connector terminal damage, use the Rotunda Flex Probe kit for the test lamp probe connection to the vehicle. Do not use the test lamp probe directly on any connector.

A1 CHECK THE RGTM (REAR GATE TRUNK MODULE) PID (PARAMETER IDENTIFICATION)

Using a diagnostic scan tool, view the RGTM PID .
- LIFTG_DECKL_AJAR

Monitor the PID -
- Liftgate ajar status must show closed when the liftgate is closed.

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to A2

No	Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions. REFER to: Module Programming (418-01 Module Configuration, General Procedures).

A2 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to A3

No	REPAIR the circuit.

A3 CHECK THE LIFTGATE LATCH MANUAL RELEASE

Mechanically unlatch the liftgate.
REFER to: Liftgate Latch Manual Release (501-14 Handles, Locks, Latches and Entry Systems, General Procedures).
REFER to: Liftgate Latch Manual Release (501-14 Handles, Locks, Latches and Entry Systems, General Procedures).

Does the liftgate latch release?

Yes

GO to A4

No	INSTALL a new power liftgate latch. REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation). REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

A4 CHECK FOR HIGH CURRENT VOLTAGE TO THE RGTM (REAR GATE TRUNK MODULE)

Ignition OFF.

Disconnect RGTM C4174A .

Connect:

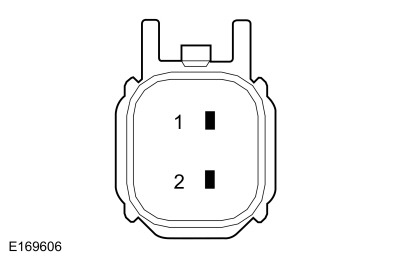

Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-2 Ground

Does the test lamp illuminate?

Yes

GO to A6

GO to A5

A5 CHECK THE RGTM (REAR GATE TRUNK MODULE) HIGH CURRENT VOLTAGE SUPPLY CIRCUIT FOR AN OPEN

Disconnect BJB C1035B .

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-2 C1035B-19

Is the resistance less than 3 ohms?

Yes

INSTALL a new BJB .

No	REPAIR the circuit.

A6 CHECK FOR VOLTAGE TO THE POWER LIFTGATE LATCH RELEASE MOTOR

Connect RGTM C4174A .

Disconnect Power Liftgate Latch C4339A .

Unlock the doors using the door lock control switch.

Connect:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4339A-2 Ground

NOTE: The RGTM only supplies voltage to the actuator momentarily. It is important to monitor the test lamp while pressing the liftgate release switch. While pressing the liftgate release switch, monitor the test lamp.

Does the test lamp momentarily illuminate?

Yes

GO to A7

GO to A8

A7 CHECK THE LIFTGATE LATCH GROUND CIRCUIT FOR AN OPEN

Connect:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4339A-2 C4339A-5

NOTE: The RGTM only supplies voltage to the actuator momentarily. It is important to monitor the test lamp while pressing the liftgate release switch. While pressing the liftgate release switch, monitor the test lamp.

Does the test lamp momentarily illuminate?

Yes

INSTAL a new power liftgate latch.
REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

No	REPAIR the circuit.

A8 CHECK THE RGTM (REAR GATE TRUNK MODULE) LIFTGATE LATCH RELEASE OUTPUT CIRCUIT FOR A SHORT TO GROUND

Disconnect RGTM C4174A .

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-9 Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to A9

No	REPAIR the circuit.

A9 CHECK THE RGTM (REAR GATE TRUNK MODULE) LIFTGATE LATCH RELEASE OUTPUT CIRCUIT FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-9 C4339A-2

Is the resistance less than 3 ohms?

Yes

GO to A10

No	REPAIR the circuit.

A10 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new RGTM .
REFER to: Rear Gate Trunk Module (RGTM) (501-03 Body Closures, Removal and Installation).

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST B: THE LIFTGATE UNLATCHES BUT THE POWER LIFTGATE IS INOPERATIVE

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM P0A2F:4B	Drive Motor 'A' Over Temperature: Over Temperature	This DTC sets when RGTM detects excessive internal heat inside the Power liftgate motor.
RGTM P0A35:4B	Drive Motor 'B' Over Temperature: Over Temperature	This DTC sets when RGTM detects excessive internal heat inside the Power liftgate motor.
RGTM B1515:77	Tailgate/Liftgate/Boot/Trunk: Commanded Position Not Reachable	Sets when the liftgate position signal is not received by RGTM from the liftgate sensor.
RGTM B1515:97	Tailgate/Liftgate/Boot/Trunk: Component Or System Operation Obstructed Or Blocked	Sets when the power liftgate operation is obstructed or blocked due to incorrect liftgate alignment.
RGTM C1B14:11	Sensor Supply Voltage A: Circuit Short To Ground	Sets when the RGTM detects a short to ground from the power liftgate motor sensor voltage supply circuit.
RGTM C1B15:11	Sensor Supply Voltage B: Circuit Short To Ground	Sets when the RGTM detects a short to ground from the power liftgate motor sensor voltage supply circuit.
RGTM B144D:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 1: Signal Invalid	Sets when the RGTM receives no signal from the liftgate motor sensor 1 input or the sensor inputs are out of phase.
RGTM B144E:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 2: Signal Invalid	Sets when the RGTM receives no signal from the liftgate motor sensor 2 input or the sensor inputs are out of phase.
RGTM B1556:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 3: Signal Invalid	Sets when the RGTM receives no signal from the liftgate motor sensor 3 input or the sensor inputs are out of phase.
RGTM B1555:29	Tailgate/Liftgate/Boot/Trunk Position Sensor 4: Signal Invalid	Sets when the RGTM receives no signal from the liftgate motor sensor 4 input or the sensor inputs are out of phase.
RGTM B144F:11	Tailgate/Liftgate/Boot/Trunk Driver Motor: Circuit Short To Ground	Sets when the RGTM detects a short to ground from the Left power liftgate motor circuitry.
RGTM B144F:12	Tailgate/Liftgate/Boot/Trunk Driver Motor: Circuit Short To Battery	Sets when the RGTM detects a short to voltage from the Left power liftgate motor circuitry.
RGTM B144F:13	Tailgate/Liftgate/Boot/Trunk Driver Motor: Circuit Open	Sets when the RGTM detects an open from the Left power liftgate motor circuitry.
RGTM B144F:79	Tailgate/Liftgate/Boot/Trunk Driver Motor: Mechanical Linkage Failure	Sets when the RGTM detects the power liftgate strut does not keep the liftgate open.
RGTM B1557:11	Power Liftgate/Decklid Driver Motor 2: Circuit Short To Ground	Sets when the RGTM detects an open from the Right power liftgate motor circuitry.
RGTM B1557:12	Power Liftgate/Decklid Driver Motor 2: Circuit Short To Battery	Sets when the RGTM detects an open from the Right power liftgate motor circuitry.
RGTM B1557:13	Power Liftgate/Decklid Driver Motor 2: Circuit Open	Sets when the RGTM detects an open from the Right power liftgate motor circuitry.

Possible Sources

Wiring, terminals or connectors
Liftgate latch
Power liftgate motor
RGTM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

B1 CHECK FOR COMMUNICATION TO THE RGTM (REAR GATE TRUNK MODULE)

Using a diagnostic scan tool, carry out the network test.

Does the RGTM pass the network test?

Yes

GO to B2

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

B2 CHECK THE RGTM (REAR GATE TRUNK MODULE) PID (PARAMETER IDENTIFICATION)

Using a diagnostic scan tool, view the RGTM PID .
- LIFTG_DECKL_AJAR

Monitor the PID -
- Liftgate ajar status must change to ajar after unlatching or to closed after latching.

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to B3

No	Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions. REFER to: Module Programming (418-01 Module Configuration, General Procedures).

B3 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to B4

GO to B14

B4 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to B5

No	REPAIR the circuit.

B5 CHECK THE LIFTGATE LATCH PRIMARY, SECONDARY AND PAWL SWITCH PARAMETER IDENTIFICATIONS (PIDS)

Using a diagnostic scan tool, view RGTM Parameter Identifications (PIDs).

Using a diagnostic scan tool, monitor the following RGTM Parameter Identifications (PIDs):
- Primary Switch input (LIFTG_PRIM_SW)
- Tailgate Latch's Secondary Position Signal (LATCH_SECND_SW)
- Tailgate Latch's Power Close Unit Home Position Switch (LATCH_HOME_SW)
- Tailgate Latch Pawl Switch (TAILGATE_PWL_SW)

NOTE: The liftgate is in the primary position when the liftgate is in the full closed position. The liftgate is in the unlatch position when the liftgate is open and completely out of the striker. Begin with the liftgate in the open position, then slowly close the liftgate to the secondary latch (first click) and then primary latch (second click) positions.

Liftgate Latch Position	LIFTG_PRIM_SW	LATCH_SECND_SW	TAILGATE_PWL_SW	LATCH_HOME_SW
Fully unlatched	Pressed	Pressed	Pressed	Not Pressed
Secondary (first click)	Not Pressed	Pressed	Not Pressed	Not Pressed
Primary (second click)	Not Pressed	Not Pressed	Not Pressed	Not Pressed

Do the switch states agree with the table?

Yes

GO to B6

GO to B7

B6 CHECK THE OPERATION OF ALL THE POWER LIFTGATE INPUTS

NOTE: Make sure the power liftgate is enabled from the message center.

Ignition ON.

Clear the DTC

Select PARK.

Unlock the doors using the door lock control switch.

Close the liftgate to the full closed position (manually if necessary).

Open and close the power liftgate using the front interior power liftgate switch (located on the instrument panel).

Open and close the power liftgate using a programmed RKE transmitter.

Open the power liftgate using the exterior liftgate release switch.

Close the power liftgate using the rear interior power liftgate switch (located on the bottom of the liftgate trim panel).

Does the power liftgate power open or power close from any input?

Yes

GO to the Symptom Chart and DIAGNOSE the correct symptom.

GO to B7

B7 CHECK FOR RGTM (REAR GATE TRUNK MODULE) COMMUNICATION AND VOLTAGE DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, carry out the RGTM self-test.

Is DTC U0101:87, U0140:87, U0294:87, U3003:16 or U3003:17 present?

Yes

For DTC U0101:87, GO to Pinpoint Test K
For DTC U0140:87, GO to Pinpoint Test L
For DTC U0294:87, GO to Pinpoint Test M
For DTC U3003:16, GO to Pinpoint Test N
For DTC U3003:17, GO to Pinpoint Test O

GO to B8

B8 CHECK FOR POWER LIFTGATE MOTOR DIAGNOSTIC TROUBLE CODES (DTCS)

View the results from the RGTM self-test.

Is DTC B144F:11, B144F:12, B144F:13,B144F:79,B1557:11,B1557:12,B1557:13, B1515:77 or B1515:97 present?

Yes

For DTC B1515:77 or B1515:97, DIAGNOSE all other DTC first. If no other DTC is present, Manually OPERATE the luggage compartment lid and CHECK for mechanical binding, If mechanical binding exists, REPAIR as necessary. If no mechanical binding is found, CHECK the luggage compartment lid alignment.
For DTC P0A2F:4B or P0A35:4B, INSTALL a new power liftgate motor.
REFER to: Power Liftgate Motor (501-03 Body Closures, Removal and Installation). For all other DTC , GO to B9

GO to B13

B9 CHECK THE POWER LIFTGATE MOTOR CIRCUITS FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect RGTM C4174B .

Disconnect Suspect Power Liftgate Motor .

Ignition ON.

Measure:
Click to display connectors
Left Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4332-9 Ground

C4332-2 Ground

Click to display connectors
Right Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4225-9 Ground

C4225-2 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to B10

B10 CHECK THE POWER LIFTGATE MOTOR CIRCUITS FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors
Left Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4332-9 Ground

C4332-2 Ground

Click to display connectors
Right Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4225-9 Ground

C4225-2 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to B11

No	REPAIR the circuit in question.

B11 CHECK THE POWER LIFTGATE MOTOR CIRCUITS FOR A SHORT TOGETHER

Measure:
Click to display connectors
Left Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4332-9 C4332-2

Click to display connectors
Right Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4225-9 C4225-2

Is the resistance greater than 10,000 ohms?

Yes

GO to B12

No	REPAIR the circuits.

B12 CHECK THE POWER LIFTGATE MOTOR CIRCUITS FOR AN OPEN

Measure:
Click to display connectors
Left Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4332-2 C4174B-13

C4332-9 C4174B-1

Click to display connectors
Right Power Liftgate Motor

Positive Lead Measurement / Action Negative Lead

C4225-2 C4174B-14

C4225-9 C4174B-2

Are the resistances less than 3 ohms?

Yes

GO to B14

No	REPAIR the circuit in question.

B13 CHECK FOR POWER LIFTGATE MOTOR SENSOR DIAGNOSTIC TROUBLE CODES (DTCS)

View the results from the RGTM self-test.

Is DTC B144D:29, B144E:29, B1555:29 or B1556:29 present?

Yes

GO to B14

GO to B18

B14 CHECK THE POWER LIFTGATE MOTOR SENSOR CIRCUITS FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect RGTM C4174B .

Disconnect Suspect Power Liftgate Motor. .

Ignition ON.

Measure:
Click to display connectors

Left Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4332-4		Ground
C4332-5		Ground
C4332-6		Ground
C4332-7		Ground

Click to display connectors

Right Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4225-4		Ground
C4225-5		Ground
C4225-6		Ground
C4225-7		Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to B15

B15 CHECK THE POWER LIFTGATE MOTOR SENSOR CIRCUITS FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Left Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4332-4		Ground
C4332-5		Ground
C4332-6		Ground
C4332-7		Ground

Click to display connectors

Right Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4225-4		Ground
C4225-5		Ground
C4225-6		Ground
C4225-7		Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to B16

No	REPAIR the circuit in question.

B16 CHECK THE POWER LIFTGATE MOTOR SENSOR CIRCUITS FOR A SHORT TOGETHER

Measure:
Click to display connectors

Left Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4332-4		C4332-5
C4332-4		C4332-6
C4332-4		C4332-7
C4332-5		C4332-6
C4332-5		C4332-7
C4332-6		C4332-7

Click to display connectors

Right Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4225-4		C4225-5
C4225-4		C4225-6
C4225-4		C4225-7
C4225-5		C4225-6
C4225-5		C4225-7
C4225-6		C4225-7

Are the resistances greater than 10,000 ohms?

Yes

GO to B17

No	REPAIR the circuits in question.

B17 CHECK THE POWER LIFTGATE MOTOR SENSOR CIRCUITS FOR AN OPEN

Measure:
Click to display connectors

Left Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4332-4		C4174B-18
C4332-5		C4174B-15
C4332-6		C4174B-16
C4332-7		C4174B-17

Click to display connectors

Right Power Liftgate Motor

Positive Lead	Measurement / Action	Negative Lead
C4225-4		C4174B-23
C4225-5		C4174B-20
C4225-6		C4174B-21
C4225-7		C4174B-22

Are the resistances less than 3 ohms?

Yes

INSTALL a power liftgate motor in question.
REFER to: Power Liftgate Motor (501-03 Body Closures, Removal and Installation). TEST the system for normal operation.GO to B19

No	REPAIR the circuit in question.

B18 CHECK FOR OTHER LIFTGATE LATCH DIAGNOSTIC TROUBLE CODES (DTCS)

View the results from the RGTM self-test.

Are any RGTM Diagnostic Trouble Codes (DTCs) present?

Yes

For all other Diagnostic Trouble Codes (DTCs), REFER to the RGTM DTC chart in this section.

No	For DTC B145D:11, B145D:12 or B145D:13, GO to Pinpoint Test D

B19 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST C: THE POWER LIFTGATE IS INOPERATIVE FROM ONE OF THE POWER LIFTGATE CONTROL SWITCHES

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM B12E8:11	Liftgate/Tailgate Control/Release Switch: Circuit Short To Ground	Sets when the BCM detects a short to ground from the exterior liftgate release switch input circuit.
BCM B11C4:23	Boot/trunk close button: Signal Stuck Low	Sets when the RGTM detects a short to ground from the rear power liftgate release switch input circuit.
BCM B12E8:23	Liftgate/Tailgate Control/Release Switch: Signal Stuck Low	Sets when the RGTM detects a short to ground from the front power liftgate release switch input circuit.
BCM B144C:23	Tailgate/Liftgate/Boot/Trunk Outer Handle Switch: Signal Stuck Low	Sets when the RGTM detects a short to ground from the exterior liftgate release switch input circuit.
BCM B1219:11	Interior Boot/Trunk Release Switch: Circuit Short To Ground	Sets when the BCM detects a short to ground from the exterior liftgate release switch input circuit.

Possible Sources

Wiring, terminals or connectors
Front interior power liftgate switch
Rear interior power liftgate switch
Exterior liftgate release switch
BCM
RGTM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTE: If the concern is with the exterior liftgate release switch, verify the concern is not passive entry related. If the liftgate opens from the liftgate release switch after the vehicle has been electronically unlocked but does not open from the liftgate release switch when the vehicle is locked, the concern is not with the power liftgate system.

C1 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to C2

GO to C3

C2 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to C3

No	REPAIR the circuit.

C3 CHECK THE OPERATION OF THE POWER LIFTGATE FROM ALL THE SWITCH INPUTS

NOTE: Make sure the power liftgate is enabled from the message center.

Ignition OFF.

Select PARK.

Ignition ON.

Close the liftgate (manually if necessary).

Unlock the doors using the door lock control switch.

Open and close the power liftgate using the front interior power liftgate switch (located on the instrument panel).

Open the power liftgate using the exterior liftgate release switch.

Close the power liftgate using the rear power liftgate switch (located on the bottom of the liftgate trim panel).

Does the power liftgate open or close from any input?

Yes

GO to C4

No	GO to the Symptom Chart and DIAGNOSE the correct symptom.

C4 CHECK THE POWER LIFTGATE SWITCH STATUS

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_LCK_SW_INP
- TAILGATE_IP-CS_SW
- TAILGATE_REL_SW
- TAILGATE_SHUT_SW

Do the Parameter Identifications (PIDs) indicates switch is pressed?

Yes

GO to C6

GO to C5

C5 ISOLATE THE SUSPECT POWER LIFTGATE SWITCH FOR A SHORT TO GROUND USING THE LIFTGATE SWITCH PID (PARAMETER IDENTIFICATION)

Ignition OFF.

Disconnect the suspect power liftgate switch.

Ignition ON.

Using a diagnostic scan tool, monitor the following RGTM Parameter Identifications (PIDs):
- TAILGATE_LCK_SW_INP
- TAILGATE_IP-CS_SW
- TAILGATE_REL_SW
- TAILGATE_SHUT_SW

Does the PID in question continue to indicate a switch is pressed?

Yes

For the exterior liftgate release switch, GO to C6
For a front or rear interior power liftgate switch, GO to C7

No	INSTALL a new power liftgate switch in question.

C6 ISOLATE THE BCM (BODY CONTROL MODULE) FOR A SHORT TO GROUND WHILE CHECKING THE RGTM (REAR GATE TRUNK MODULE) LFTGATE_R_SW () PID (PARAMETER IDENTIFICATION)

Ignition OFF.

Disconnect BCM C2280C .

Ignition ON.

Using a diagnostic scan tool, monitor the RGTM LFTGATE_R_SW () PID .

Does the PID continue to indicate the switch is pressed?

Yes

GO to C7

GO to C11

C7 CHECK THE SUSPECT POWER LIFTGATE SWITCH INPUT CIRCUIT FOR A SHORT TO GROUND

Ignition OFF.

Disconnect RGTM C4174A .

Measure:
Click to display connectors
Front Interior Power Liftgate Switch

Positive Lead Measurement / Action Negative Lead

C4174A-19 Ground

Click to display connectors
Rear Interior Power Liftgate Switch

Positive Lead Measurement / Action Negative Lead

C4174A-20 Ground

Click to display connectors
Exterior Liftgate Release Switch

Positive Lead Measurement / Action Negative Lead

C4174A-8 Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to C12

No	REPAIR the circuit.

C8 BYPASS THE SUSPECT POWER LIFTGATE SWITCH

Ignition OFF.

Disconnect the suspect power liftgate switch.

Unlock the doors using the door lock control switch.

NOTE: The liftgate must be open when carrying out this step if the rear interior power liftgate switch is the suspect component. For the suspect power liftgate switch, connect:
Click to display connectors
Front Interior Liftgate Switch

Positive Lead Measurement / Action Negative Lead

C205-12 C205-1

Click to display connectors
Rear Interior Liftgate Control Switch

Positive Lead Measurement / Action Negative Lead

C4333-6 C4333-2

Click to display connectors
Exterior Liftgate Release Switch

Positive Lead Measurement / Action Negative Lead

C4353-1 C4353-2

Remove the fused jumper wire.

Does the liftgate open or close?

Yes

INSTALL a new power liftgate switch in question.

GO to C9

C9 CHECK THE POWER LIFTGATE SWITCH GROUND CIRCUIT FOR AN OPEN

For the suspect power liftgate switch, connect:
Click to display connectors
Front Interior Liftgate Switch

Positive Lead Measurement / Action Negative Lead

C205-12 Ground

Click to display connectors
Rear Interior Liftgate Control Switch

Positive Lead Measurement / Action Negative Lead

C4333-6 Ground

Click to display connectors
Exterior Liftgate Release Switch

Positive Lead Measurement / Action Negative Lead

C4353-1 Ground

Remove the fused jumper wire.

Does the liftgate open or close?

Yes

REPAIR the circuit.

GO to C10

C10 CHECK THE POWER LIFTGATE SWITCH INPUT CIRCUIT FOR AN OPEN

Disconnect RGTM C4174B .

For the suspect liftgate switch, measure:
Click to display connectors
Front Interior Liftgate Switch

Positive Lead Measurement / Action Negative Lead

C205-12 C4174A-19

Click to display connectors
Rear Interior Liftgate Switch

Positive Lead Measurement / Action Negative Lead

C4333-6 C4174A-20

Click to display connectors
Exterior Liftgate Release Switch

Positive Lead Measurement / Action Negative Lead

C4353-1 C4174A-8

Is the resistance less than 3 ohms?

Yes

GO to C12

No	REPAIR the circuit.

C11 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Disconnect and inspect all BCM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the BCM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM. Refer to the appropriate Removal and Installation procedure in Section 419-10.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

C12 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST D: THE POWER LIFTGATE STOPS IN THE SECONDARY LATCH POSITION

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM B145D:11	Tailgate/Liftgate/Boot/Trunk Power Cinch Striker Motor: Circuit Short To Ground	Sets when the RGTM detects a short to ground from one of the liftgate latch motor circuits.
RGTM B145D:12	Tailgate/Liftgate/Boot/Trunk Power Cinch Striker Motor: Circuit Short To Battery	Sets when the RGTM detects a short to voltage from one of the liftgate latch motor circuits.
RGTM B1451:29	Tailgate/Liftgate/Boot/Trunk Latch Centering Position Switch: Signal Invalid	Sets when the RGTM detects the sector gear open/close switch(es) are not in the correct state at the beginning of self-test, or no sector gear switch transition during releasing/cinching.
RGTM B1453:29	Tailgate/Liftgate/Boot/Trunk Latch Position Switch: Signal Invalid	Sets when the RGTM detects the sector gear open/close switch(es) are not in the correct state at the beginning of self-test, or no sector gear switch transition during releasing/cinching.
RGTM B145D:13	Tailgate/Liftgate/Boot/Trunk Power Cinch Striker Motor: Circuit Open	Sets when the RGTM detects an open from one of the liftgate latch motor circuits.

Possible Sources

Liftgate alignment
Liftgate striker alignment
Mechanical binding

D1 CHECK THE RGTM (REAR GATE TRUNK MODULE) PID (PARAMETER IDENTIFICATION)

Using a diagnostic scan tool, view the RGTM PID .
- LIFTG_DECKL_AJAR

Monitor the PID -
- Liftgate ajar status must show closed when the liftgate is closed.

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to D2

No	Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions. REFER to: Module Programming (418-01 Module Configuration, General Procedures).

D2 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must read value 0 once the liftgate is closed manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to D3

GO to D4

D3 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to D4

No	REPAIR the circuit.

D4 CHECK THE POWER LIFTGATE SELF TEST LEARNING STATUS

Using a diagnostic scan tool, view the RGTM PID .
- LIFTG_DECKL_STS

Does power liftgate return learned or complete?

Yes

GO to D5

GO to D7

D5 CHECK THE LIFTGATE LATCH PRIMARY, SECONDARY AND PAWL SWITCH PARAMETER IDENTIFICATIONS (PIDS)

Using a diagnostic scan tool, view RGTM Parameter Identifications (PIDs).

Using a diagnostic scan tool, monitor the following RGTM Parameter Identifications (PIDs):
- Primary Switch input (LIFTG_PRIM_SW)
- Tailgate Latch's Secondary Position Signal (LATCH_SECND_SW)
- Tailgate Latch's Power Close Unit Home Position Switch (LATCH_HOME_SW)
- Tailgate Latch Pawl Switch (TAILGATE_PWL_SW)

Liftgate Latch Position	LIFTG_PRIM_SW	LATCH_SECND_SW	TAILGATE_PWL_SW	LATCH_HOME_SW
Fully unlatched	Pressed	Pressed	Pressed	Not Pressed
Secondary (first click)	Not Pressed	Pressed	Not Pressed	Not Pressed
Primary (second click)	Not Pressed	Inactive	Not Pressed	Not Pressed

Do the switch states agree with the table?

Yes

GO to D6

GO to D8

D6 CHECK THE MANUAL OPERATION OF THE LIFTGATE

Turn the power liftgate off (disable) from the message center.

While manually opening and closing the liftgate, check the liftgate for:
- Liftgate/wedge alignment
- Liftgate strut operation (strut should hold or push liftgate open when beyond half open)
- Power liftgate motor (should move freely while manually opening and closing liftgate and be securely mounted to the liftgate and bracket)
- Power liftgate latch (should latch completely)

Does the liftgate open and close correctly?

Yes

GO to D7

No	REPAIR as necessary.

D7 CHECK THE LIFTGATE LATCH AND STRIKER ALIGNMENT

Inspect the striker and latch for correct alignment.

Is the latch and striker aligned correctly?

Yes

GO to D11

No	ALIGN the liftgate and striker.

D8 CHECK THE LIFTGATE LATCH INPUT CIRCUITS FOR A SHORT TO GROUND

Ignition OFF.

Disconnect RGTM C4174A .

Disconnect Liftgate Latch C4339A .

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C4339A-1		Ground
C4339A-3		Ground
C4339A-4		Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to D9

No	REPAIR the circuit in question.

D9 CHECK THE LIFTGATE LATCH INPUT CIRCUITS FOR A SHORT TO EACH OTHER

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C4339A-1		C4339A-3
C4339A-1		C4339A-4
C4339A-4		C4339A-3

Are the resistances greater than 10,000 ohms?

Yes

GO to D10

No	REPAIR the circuits in question.

D10 CHECK THE LIFTGATE LATCH INPUT CIRCUITS FOR AN OPEN

Measure:
Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C4339A-1		C4174A-16
C4339A-3		C4174A-18
C4339A-4		C4174A-15

Are the resistances less than 3 ohms?

Yes

INSTALL a new liftgate latch.
REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation). TEST the system for normal operation. If the concern is still present, GO to D17

No	REPAIR the circuit in question.

D11 CHECK THE LIFTGATE LATCH MOTOR CIRCUITS FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect RGTM C4174A .

Disconnect Power Liftgate Latch C4339B .

Ignition ON.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-13 Ground

C4174A-1 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to D12

D12 CHECK THE LIFTGATE LATCH MOTOR CIRCUITS FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-13 Ground

C4174A-1 Ground

Are the resistances greater than 10,000 ohms?

Yes

GO to D13

No	REPAIR the circuit in question.

D13 CHECK THE LIFTGATE LATCH MOTOR CIRCUITS FOR A SHORT TOGETHER

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-13 C4174A-1

Is the resistance greater than 10,000 ohms?

Yes

GO to D14

No	REPAIR the circuits.

D14 CHECK THE LIFTGATE LATCH MOTOR CIRCUITS FOR AN OPEN

Ignition OFF.

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-13 C4339B-1

C4174A-1 C4339B-2

Are the resistances less than 3 ohms?

Yes

GO to D15

No	REPAIR the circuit in question.

D15 CHECK THE LIFTGATE LATCH MOTOR CIRCUITS FOR A SHORT TO THE SECTOR GEAR SWITCH INPUT CIRCUIT

Disconnect RGTM C4174A .

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4339B-1 C4339B-4

C4339B-2 C4339B-4

Are the resistances greater than 10,000 ohms?

Yes

GO to D16

No	REPAIR the circuit in question.

D16 CHECK THE SECTOR GEAR SWITCH INPUT CIRCUIT FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-17 C4339B-4

Is the resistances less than 3 ohms?

Yes

INSTALL a new power liftgate latch.
REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation). CLEAR the Diagnostic Trouble Codes (DTCs) and TEST the system for normal operation. If the concern is still present, GO to D17

No	REPAIR the circuit.

D17 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST E: THE POWER LIFTGATE REVERSES DURING A POWER CLOSE OPERATION

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

Possible Sources

Liftgate alignment
Liftgate striker alignment
Mechanical binding

Visual Inspection and Pre-checks

Check for any obstruction pushing anti pinch strip

E1 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to E2

GO to E4

E2 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to E3

No	REPAIR the circuit.

E3 CHECK ANTI PINCH SEAL SWITCH STATUS

Using a diagnostic scan tool, view the RGTM PID .
- ANTIPNC_SEAL_L
- ANTIPNC_SEAL_R

Does pinch strip activate during closing operation?

Yes

INSTALL a new liftgate anti-pinch switch for the one in question.
REFER to: Liftgate Anti-Pinch Switch (501-03 Body Closures, Removal and Installation).

GO to E4

E4 CHECK THE LIFTGATE LATCH PRIMARY, SECONDARY AND PAWL SWITCH PARAMETER IDENTIFICATIONS (PIDS)

Using a diagnostic scan tool, view RGTM Parameter Identifications (PIDs).

Using a diagnostic scan tool, monitor the following RGTM Parameter Identifications (PIDs):
- Primary Switch input (LIFTG_PRIM_SW)
- Tailgate Latch's Secondary Position Signal (LATCH_SECND_SW)
- Tailgate Latch's Power Close Unit Home Position Switch (LATCH_HOME_SW)
- Tailgate Latch Pawl Switch (TAILGATE_PWL_SW)

Liftgate Latch Position	LIFTG_PRIM_SW	LATCH_SECND_SW	TAILGATE_PWL_SW	LATCH_HOME_SW
Fully unlatched	Pressed	Pressed	Pressed	Not Pressed
Secondary (first click)	Not Pressed	Pressed	Not Pressed	Not Pressed
Primary (second click)	Not Pressed	Not Pressed	Not Pressed	Not Pressed

Do the switch states agree with the table?

Yes

GO to E5

No	GO to Pinpoint Test D

E5 CHECK THE MANUAL OPERATION OF THE LIFTGATE

Ignition ON.

Turn the power liftgate off (disable) from the message center.

While manually opening and closing the liftgate, check the liftgate for:
- Liftgate/wedge alignment
- Liftgate strut operation (strut should hold or push liftgate open)
- Power liftgate motor (should move freely while manually opening and closing liftgate and be securely mounted to the liftgate and bracket)
- Power liftgate latch (should latch completely)

Does the liftgate open and close correctly?

Yes

GO to Pinpoint Test D

No	REPAIR as necessary.

PINPOINT TEST F: THE POWER LIFTGATE ANTI-PINCH STRIP DOES NOT STOP OR REVERSE THE LIFTGATE

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

Possible Sources

Liftgate anti-pinch switch
RGTM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

F1 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to F2

No	REPAIR the circuit.

F2 CHECK ANTI PINCH SEAL SWITCH STATUS

Using a diagnostic scan tool, view the RGTM PID .
- ANTIPNC_SEAL_L
- ANTIPNC_SEAL_R

Does pinch strip activate during closing operation?

Yes

GO to F3

GO to F4

F3 CHECK FOR ANTI PINCH VOLTAGE

Using a diagnostic scan tool, view the RGTM PID .
- L_Pinch_V
- R_Pinch_V

Is voltage above 6V?

Yes

GO to F4

No	REPAIR the circuit.

F4 CHECK FOR RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Ignition ON.

Using a diagnostic scan tool, carry out the RGTM self-test.

Are any Diagnostic Trouble Codes (DTCs) present?

Yes

REFER to the RGTM DTC Chart in this section.

GO to F5

F5 CHECK THE LIFTGATE ANTI-PINCH SWITCH

Ignition OFF.

Disconnect the suspect liftgate anti-pinch switch.

While pressing firmly and releasing the liftgate anti-pinch switch, measure:

Positive Lead	Measurement / Action	Negative Lead
C4172, pin 1, component side		C4172, pin 2, component side
C4173, pin 1, component side		C4173, pin 2, component side

Is the resistance between 0 to 200 ohms with the liftgate anti-pinch switch firmly pressed and between 5,700 and 6,700 ohms with the liftgate anti-pinch switch released?

Yes

GO to F6

No	INSTALL a new liftgate anti-pinch switch for the one in question. REFER to: Liftgate Anti-Pinch Switch (501-03 Body Closures, Removal and Installation).

F6 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST G: THE POWER LIFTGATE DOES NOT POWER CLOSE (POWER OPEN OK)

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM B1454:11	Tailgate/Liftgate/Boot/Trunk Left Pinch Strip: Circuit Short To Ground	Sets when the RGTM detects a short to ground from the left anti-pinch switch input.
RGTM B1454:13	Tailgate/Liftgate/Boot/Trunk Left Pinch Strip: Circuit Open	Sets when the RGTM detects an open from the left anti-pinch switch input.
RGTM B1455:11	Tailgate/Liftgate/Boot/Trunk Right Pinch Strip: Circuit Short To Ground	Sets when the RGTM detects a short to ground from the right anti-pinch switch input.
RGTM B1455:13	Tailgate/Liftgate/Boot/Trunk Right Pinch Strip: Circuit Open	Sets when the RGTM detects an open from the right anti-pinch switch input.

Possible Sources

Wiring, terminals or connectors
Liftgate alignment
Liftgate striker alignment
Mechanical binding
Liftgate anti-pinch switch
RGTM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

G1 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to G2

No	REPAIR the circuit.

G2 CHECK THE POWER LIFTGATE SELF TEST LEARNING STATUS

Using a diagnostic scan tool, view the RGTM PID .
- LIFTG_DECKL_STS

Does power liftgate return learned or complete?

Yes

GO to G3

No	Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions. REFER to: Module Programming (418-01 Module Configuration, General Procedures).

G3 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS
- MECH_END_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to G4

GO to G6

G4 CHECK ANTI PINCH SEAL SWITCH STATUS

Using a diagnostic scan tool, view the RGTM PID .
- ANTIPNC_SEAL_L
- ANTIPNC_SEAL_R

Does pinch strip activate during closing operation?

Yes

INSTALL a new liftgate anti-pinch switch for the one in question.
REFER to: Liftgate Anti-Pinch Switch (501-03 Body Closures, Removal and Installation).

GO to G5

G5 CHECK FOR ANTI PINCH VOLTAGE

Using a diagnostic scan tool, view the RGTM PID .
- L_Pinch_V
- R_Pinch_V

Is voltage above 6V?

Yes

GO to G6

No	REPAIR the circuit.

G6 CHECK FOR RGTM (REAR GATE TRUNK MODULE) LIFTGATE ANTI-PINCH SWITCH DIAGNOSTIC TROUBLE CODES (DTCS)

Ignition ON.

Using a diagnostic scan tool, carry out the RGTM self-test.

Is DTC B1454:11, B1454:13, B1455:11 or B1455:13 present?

Yes

GO to G7

GO to G12

G7 CHECK THE LIFTGATE ANTI-PINCH SWITCH

Ignition OFF.

Disconnect the suspect liftgate anti-pinch switch.

While pressing firmly and releasing the liftgate anti-pinch switch, measure:

Positive Lead	Measurement / Action	Negative Lead
C4172, pin 1, component side		C4172, pin 2, component side
C4173, pin 1, component side		C4173, pin 2, component side

Is the resistance between 0 to 200 ohms with the liftgate anti-pinch switch firmly pressed and between 5,700 and 6,700 ohms with the liftgate anti-pinch switch released?

Yes

GO to G8

No	INSTALL a new liftgate anti-pinch switch for the one in question. REFER to: Liftgate Anti-Pinch Switch (501-03 Body Closures, Removal and Installation).

G8 CHECK THE LIFTGATE ANTI-PINCH SWITCH CIRCUITS FOR A SHORT TO VOLTAGE

Disconnect RGTM C4174A .

Ignition ON.

Measure:
Click to display connectors
Left Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4172-1 Ground

C4172-2 Ground

Click to display connectors
Right Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4173-1 Ground

C4173-2 Ground

Is any voltage present?

Yes

REPAIR the circuit in question.

GO to G9

G9 CHECK THE LIFTGATE ANTI-PINCH SWITCH CIRCUIT FOR A SHORT TO GROUND

Ignition OFF.

Measure:
Click to display connectors
Left Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4172-1 Ground

Click to display connectors
Right Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4173-1 Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to G10

No	REPAIR the circuit.

G10 CHECK THE LIFTGATE ANTI-PINCH SWITCH CIRCUITS FOR A SHORT TOGETHER

Measure:
Click to display connectors
Left Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4172-1 C4172-2

Click to display connectors
Right Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4173-1 C4173-2

Is the resistance greater than 10,000 ohms?

Yes

GO to G11

No	REPAIR the circuits.

G11 CHECK THE LIFTGATE ANTI-PINCH SWITCH CIRCUITS FOR AN OPEN

Measure:
Click to display connectors
Left Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4172-1 C4174A-11

C4172-2 C4174A-22

Click to display connectors
Right Liftgate Anti-Pinch Switch

Positive Lead Measurement / Action Negative Lead

C4173-1 C4174A-12

C4173-2 C4174A-22

Are the resistances less than 3 ohms?

Yes

GO to G14

No	REPAIR the circuit in question.

G12 CHECK FOR OTHER RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Review the results from the RGTM self-test.

Are any Diagnostic Trouble Codes (DTCs) present?

Yes

REFER to the RGTM DTC Chart in this section.

GO to G13

G13 CHECK THE MANUAL OPERATION OF THE LIFTGATE

Turn the power liftgate off (disable) from the message center.

While manually opening and closing the liftgate, check the liftgate for:
- Liftgate/wedge alignment
- Liftgate strut operation (strut should hold or push liftgate open when beyond half open)
- Power liftgate motor (should move freely while manually opening and closing liftgate and be securely mounted to the liftgate and bracket)
- Power liftgate latch (should latch completely)

Does the liftgate open and close correctly?

Yes

GO to Pinpoint Test D

No	REPAIR as necessary.

G14 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST H: THE POWER LIFTGATE DOES NOT POWER OPEN (POWER CLOSE OK)

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

Possible Sources

Liftgate alignment
Liftgate striker alignment
Mechanical binding

H1 CHECK THE LIFTGATE LATCH PRIMARY, SECONDARY AND PAWL SWITCH PARAMETER IDENTIFICATIONS (PIDS)

Using a diagnostic scan tool, view RGTM Parameter Identifications (PIDs).

Using a diagnostic scan tool, monitor the following RGTM Parameter Identifications (PIDs):
- Primary Switch input (LIFTG_PRIM_SW)
- Tailgate Latch's Secondary Position Signal (LATCH_SECND_SW)
- Tailgate Latch's Power Close Unit Home Position Switch (LATCH_HOME_SW)
- Tailgate Latch Pawl Switch (TAILGATE_PWL_SW)

Liftgate Latch Position	LIFTG_PRIM_SW	LATCH_SECND_SW	TAILGATE_PWL_SW	LATCH_HOME_SW
Fully unlatched	Pressed	Pressed	Pressed	Not Pressed
Secondary (first click)	Not Pressed	Pressed	Not Pressed	Not Pressed
Primary (second click)	Not Pressed	Not Pressed	Not Pressed	Not Pressed

Do the switch states agree with the table?

Yes

GO to H2

GO to H3

H2 CHECK THE RGTM (REAR GATE TRUNK MODULE) PID (PARAMETER IDENTIFICATION)

Using a diagnostic scan tool, view the RGTM PID .
- LIFTG_DECKL_AJAR

Monitor the PID -
- Liftgate ajar status must show closed when the liftgate is closed.

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to H3

No	INSTALL a new power liftgate latch. REFER to: Liftgate Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

H3 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to H4

GO to H5

H4 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to H5

No	REPAIR the circuit.

H5 CHECK FOR RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Ignition ON.

Using a diagnostic scan tool, carry out the RGTM self-test.

Are any Diagnostic Trouble Codes (DTCs) present?

Yes

REFER to the RGTM DTC Chart in this section.

GO to H6

H6 CHECK THE LIFTGATE LATCH RELEASE OPERATION

NOTE: Make sure the power liftgate is enabled from the message center.

Ignition ON.

Select PARK.

Unlock the doors using a door lock control switch.

Press the front interior power liftgate switch.

Does the liftgate latch release?

Yes

GO to H7

No	GO to Pinpoint Test A

H7 CHECK THE MANUAL OPERATION OF THE LIFTGATE

Turn the power liftgate off (disable) from the message center.

While manually opening and closing the liftgate, check the liftgate for:
- Liftgate/wedge alignment
- Liftgate strut operation (strut should hold or push liftgate open when beyond half open)
- Power liftgate motor (should move freely while manually opening and closing liftgate and be securely mounted to the liftgate and bracket)
- Power liftgate latch (should latch completely)

Does the liftgate open and close correctly?

Yes

GO to Pinpoint Test B

No	REPAIR as necessary.

PINPOINT TEST I: THE POWER LIFTGATE CLOSES (WITH A CONTINUOUS CHIME) IMMEDIATELY AFTER A POWER OPEN

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

Possible Sources

Excessive weight on the liftgate, such as snow, ice or a bicycle rack
Liftgate strut
Power liftgate initialization

I1 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to I2

GO to I3

I2 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to I3

No	REPAIR the circuit.

I3 CHECK FOR RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

NOTE: Make sure there is no excessive weight on the liftgate, such as snow, ice or a luggage rack.

Ignition ON.

Using a diagnostic scan tool, carry out the RGTM self-test.

Are any Diagnostic Trouble Codes (DTCs) present?

Yes

REFER to the RGTM DTC Chart in this section.

GO to I4

I4 CHECK THE LIFTGATE STRUT

Verify there is no excessive weight on the liftgate, such as snow, ice or a bicycle rack.

Turn the power liftgate off (disable) from the message center.

Operate the liftgate manually to verify the liftgate strut holds the liftgate open in various positions.

Does the liftgate strut hold the liftgate open correctly?

Yes

GO to I5

No	INSTALL a new liftgate strut. INITIALIZE the power liftgate.

I5 INITIALIZE THE POWER LIFTGATE AND RECHECK THE OPERATION

Initialize the power liftgate.

Operate the power liftgate using the front interior power liftgate switch.

Does the liftgate close with a continuous chime immediately after a power open?

Yes

GO to I6

No	The system is operating correctly. The concern may have been caused by an incorrectly initialized RGTM or weight on the liftgate.

I6 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST J: THE POWER LIFTGATE HANDS-FREE ACTUATION IS INOPERATIVE

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
BCM B1495:02	Hands Free Liftgate/Decklid Input Sensor: General Signal Failure	Sets when the BCM detects a communication fault with the Hands-free liftgate actuation sensors
BCM B1495:08	Hands Free Liftgate/Decklid Input Sensor: Bus Signal/Message Failures	A continuous and on-demand DTC that sets in the BCM when invalid LIN data is received from the Hands-free liftgate actuation module
BCM B1495:49	Hands Free Liftgate/Decklid Input Sensor: Internal Electronic Failure	This DTC sets when the BCM detects an internal electronic failure in Hands-free liftgate actuation sensors
BCM B1495:11	Hands Free Liftgate/Decklid Input Sensor: Circuit Short To Ground	Sets when the BCM detects a short to ground from the hands-free liftgate actuation module input.

Possible Sources

Wiring, terminals or connectors
Hands-free liftgate actuation module
Hands-free liftgate actuation lower sensor
Hands-free liftgate actuation upper sensor
BCM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

J1 CHECK THE POWER LIFTGATE POSITION SENSOR

Using a diagnostic scan tool, view the RGTM PID .
- TAILGATE_POS

Monitor the PID -
- Position counter must start from 0 when liftgate is closed and increment when opening the liftgate manually.

Does the Parameter Identifications (PIDs) agree with liftgate position sensor status?

Yes

GO to J2

GO to J3

J2 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 volts for unlatching
- Power voltage supply A and Power voltage supply B must be above 10.5 volts for power operation

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to J3

No	REPAIR the circuit.

J3 CHECK THE POWER LIFTGATE OPERATION FROM THE EXTERIOR LIFTGATE RELEASE SWITCH

NOTE: Make sure the power liftgate is enabled from the message center.

Ignition ON.

Unlock the doors from the door lock control switch.

Press the exterior liftgate release switch on the liftgate.

Does the power liftgate open?

Yes

GO to J4

No	GO to Pinpoint Test C

J4 CHECK THE LIFTGATE PASSIVE ENTRY OPERATION

NOTE: Make sure the passive entry feature is enabled from the message center.

Ignition OFF.

Close the liftgate.

Lock the doors using the RKE transmitter.

With a valid programmed passive key within 1 meter (3 feet) of the rear bumper, press the exterior liftgate release switch on the liftgate.

Does the power liftgate open?

Yes

GO to J5

No	DIAGNOSE the liftgate passive entry feature. REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).

J5 VERIFY THE CONCERN IS PRESENT

Close the liftgate.

With the passive key within 1 meter (3 feet) of the rear bumper, move your foot towards and then away (similar to a kicking motion) near the center of the rear bumper.

Does the power liftgate open?

Yes

The system is operating correctly. INFORM the customer of the operation of the hands-free liftgate actuation.

GO to J6

J6 CHECK THE POWER LIFTGATE HANDS-FREE ACTUATION MODULE VOLTAGE SUPPLY CIRCUIT FOR AN OPEN

Disconnect Hands-Free Liftgate Actuation Module C4401 .

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4401-2 Ground

Is the voltage greater than 11 volts?

Yes

GO to J7

No	REPAIR the circuit.

J7 CHECK THE POWER LIFTGATE HANDS-FREE ACTUATION MODULE GROUND CIRCUIT FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4401-2 C4401-3

Is the voltage greater than 11 volts?

Yes

GO to J8

No	REPAIR the circuit.

J8 CHECK THE BCM (BODY CONTROL MODULE) HANDS-FREE INPUT CIRCUIT FOR A SHORT TO GROUND

Disconnect BCM C2280F .

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4401-1 Ground

Is the resistance greater than 10,000 ohms?

Yes

GO to J9

No	REPAIR the circuit.

J9 CHECK THE BCM (BODY CONTROL MODULE) HANDS-FREE INPUT CIRCUIT FOR AN OPEN

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4401-1 C2280F-54

Is the resistance less than 3 ohms?

Yes

GO to J10

No	REPAIR the circuit.

J10 CHECK THE HANDS-FREE LIFTGATE ACTUATION LOWER SENSOR

INSTALL a new hands-free liftgate actuation lower sensor.
REFER to: Hands-Free Liftgate Actuation Lower Sensor (501-03 Body Closures, Removal and Installation).

Check the operation of the hands-free liftgate actuation.

Does the hands-free liftgate actuation operate?

Yes

The system is operating correctly. The concern was caused by the hands-free liftgate actuation lower sensor.

GO to J11

J11 CHECK THE HANDS-FREE LIFTGATE ACTUATION UPPER SENSOR

INSTALL a new hands-free liftgate actuation upper sensor.
REFER to: Hands-Free Liftgate Actuation Upper Sensor (501-03 Body Closures, Removal and Installation).

Check the operation of the hands-free liftgate actuation.

Does the hands-free liftgate actuation operate?

Yes

The system is operating correctly. The concern was caused by the hands-free liftgate actuation upper sensor.

No	INSTALL a new hands-free liftgate actuation module. REFER to: Hands-Free Liftgate Actuation Module (501-03 Body Closures, Removal and Installation). Using a diagnostic scan tool, perform a LIN new module initialization following the on-screen instructions. GO to J12

J12 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Disconnect and inspect all BCM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the BCM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM. Refer to the appropriate Removal and Installation procedure in Section 419-10.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST K: U0101:87

Normal Operation and Fault Conditions

The RGTM and the PCM communicate through the CAN . Messages are exchanged between the modules for the purposes of determining what functions are carried out.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM U0101:87	Lost Communication with TCM: Missing Message	Sets by the RGTM if expected transmission range data messages received from the PCM over the CAN are missing.

Possible Sources

Network communication concern
PCM
RGTM

K1 VERIFY THE CUSTOMER CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to K2

No	CLEAR the DTC . The system is operating correctly at this time. The DTC may have been set due to high network traffic or intermittent fault condition.

K2 CHECK THE COMMUNICATION NETWORK

Using a diagnostic scan tool, carry out the network test.

Does the PCM pass the network test?

Yes

GO to K3

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

K3 CARRY OUT THE PCM (POWERTRAIN CONTROL MODULE) SELF-TEST

Using a diagnostic scan tool, carry out the PCM KOEO and KOER self-tests.

Are any non-network Diagnostic Trouble Codes (DTCs) present?

Yes

DIAGNOSE all non-network Diagnostic Trouble Codes (DTCs). REFER to the PCM DTC Chart in the appropriate 303-14 section.

GO to K4

K4 RETRIEVE THE RECORDED DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE RGTM (REAR GATE TRUNK MODULE) SELF-TEST

Review the results from the RGTM self-test.

Are any non-network Diagnostic Trouble Codes (DTCs) present?

Yes

DIAGNOSE all non-network Diagnostic Trouble Codes (DTCs). REFER to the RGTM DTC Chart in this section.

GO to K5

K5 RECHECK THE RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, clear the RGTM Diagnostic Trouble Codes (DTCs).

Ignition OFF.

Ignition ON.

Wait 10 seconds.

Using a diagnostic scan tool, carry out the continuous memory self-test.

Check the RGTM Diagnostic Trouble Codes (DTCs).

Is DTC U0101:87 still present?

Yes

GO to K6

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or intermittent fault condition.

K6 CHECK FOR OTHER CAUSES OF COMMUNICATION NETWORK CONCERN

Check the vehicle service history for recent service actions related to the PCM . If recent service history is found:
- verify correct replacement module was installed
  - HVBOM may be used to verify correct part number
- verify the configuration of replacement module was correct
  - re-configure module using as-built data if prior configuration is suspect
- verify the module was not obtained from a like vehicle and installed into customer vehicle
  - return the swapped module to source vehicle and obtain new replacement module

Operate the system and determine if the observable symptom is still present.

Is the observable symptom still present?

Yes

GO to K7

No	The system is operating correctly at this time. The concern may have been due to incorrect parts replacement procedures or incorrect module configuration.

K7 CHECK FOR CORRECT PCM (POWERTRAIN CONTROL MODULE) OPERATION

Disconnect and inspect all PCM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the PCM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

VIN required to access Guided Routine (PCM)

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST L: U0140:87

Normal Operation and Fault Conditions

The RGTM and the BCM communicate through the CAN . Messages are exchanged between the modules for the purposes of determining what functions are carried out.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM U0140:87	Lost Communication With Body Control Module: Missing Message	Sets by the RGTM if expected data messages received from the BCM over the CAN are missing.

Possible Sources

Network communication concern
RGTM
BCM

L1 VERIFY THE CUSTOMER CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to L2

No	CLEAR the DTC . The system is operating correctly at this time. The DTC may have been set due to high network traffic or intermittent fault condition.

L2 CHECK THE COMMUNICATION NETWORK

Using a diagnostic scan tool, carry out the network test.

Does the BCM pass the network test?

Yes

GO to L3

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

L3 CARRY OUT THE BCM (BODY CONTROL MODULE) SELF-TEST

Using a diagnostic scan tool, carry out the BCM self-test.

Are any non-network Diagnostic Trouble Codes (DTCs) present?

Yes

DIAGNOSE all non-network Diagnostic Trouble Codes (DTCs).
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing).

GO to L4

L4 RETRIEVE THE RECORDED DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE RGTM (REAR GATE TRUNK MODULE) SELF-TEST

Review the results from the RGTM self-test.

Are any non-network Diagnostic Trouble Codes (DTCs) present?

Yes

DIAGNOSE all non-network Diagnostic Trouble Codes (DTCs). REFER to the RGTM DTC Chart in this section.

GO to L5

L5 RECHECK THE RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, clear the RGTM Diagnostic Trouble Codes (DTCs).

Ignition OFF.

Ignition ON.

Wait 10 seconds.

Using a diagnostic scan tool, carry out the continuous memory self-test.

Check the RGTM Diagnostic Trouble Codes (DTCs).

Is DTC U0140:87 still present?

Yes

GO to L6

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or intermittent fault condition.

L6 CHECK FOR OTHER CAUSES OF COMMUNICATION NETWORK CONCERN

Check the vehicle service history for recent service actions related to the BCM . If recent service history is found:
- verify correct replacement module was installed
  - HVBOM may be used to verify correct part number
- verify the configuration of replacement module was correct
  - re-configure module using as-built data if prior configuration is suspect
- verify the module was not obtained from a like vehicle and installed into customer vehicle
  - return the swapped module to source vehicle and obtain new replacement module

Operate the system and determine if the observable symptom is still present.

Is the observable symptom still present?

Yes

GO to L7

No	The system is operating correctly at this time. The concern may have been due to incorrect parts replacement procedures or incorrect module configuration.

L7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Disconnect and inspect all BCM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the BCM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM. Refer to the appropriate Removal and Installation procedure in Section 419-10.

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST M: U0294:87

Normal Operation and Fault Conditions

The RGTM and the PCM communicate through the CAN . Messages are exchanged between the modules for the purposes of determining what functions are carried out.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM U0294:87	Lost Communication With Powertrain Control Monitor Module: Missing Message	Sets by the RGTM if expected data messages received from the PCM over the CAN are missing.

Possible Sources

Network communication concern
RGTM
PCM

M1 VERIFY THE CUSTOMER CONCERN

Ignition ON.

Verify there is an observable symptom present.

Is an observable symptom present?

Yes

GO to M2

No	CLEAR the DTC . The system is operating correctly at this time. The DTC may have been set due to high network traffic or intermittent fault condition.

M2 CHECK THE COMMUNICATION NETWORK

Using a diagnostic scan tool, carry out the network test.

Does the PCM pass the network test?

Yes

GO to M3

No	REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

M3 CARRY OUT THE PCM (POWERTRAIN CONTROL MODULE) SELF-TEST

Using a diagnostic scan tool, carry out the PCM KOEO and KOER self-tests.

Are any non-network Diagnostic Trouble Codes (DTCs) present?

Yes

DIAGNOSE all non-network Diagnostic Trouble Codes (DTCs). REFER to the PCM DTC Chart in the appropriate 303-14 section.

GO to M4

M4 RETRIEVE THE RECORDED DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE RGTM (REAR GATE TRUNK MODULE) SELF-TEST

Review the results from the RGTM self-test.

Are any non-network Diagnostic Trouble Codes (DTCs) present?

Yes

DIAGNOSE all non-network Diagnostic Trouble Codes (DTCs). REFER to the RGTM DTC Chart in this section.

GO to M5

M5 RECHECK THE RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Using a diagnostic scan tool, clear the RGTM Diagnostic Trouble Codes (DTCs).

Ignition OFF.

Ignition ON.

Wait 10 seconds.

Using a diagnostic scan tool, carry out the continuous memory self-test.

Check the RGTM Diagnostic Trouble Codes (DTCs).

Is DTC U0294:87 still present?

Yes

GO to M6

No	The system is operating correctly at this time. The DTC may have been set due to high network traffic or intermittent fault condition.

M6 CHECK FOR OTHER CAUSES OF COMMUNICATION NETWORK CONCERN

Check the vehicle service history for recent service actions related to the PCM . If recent service history is found:
- verify correct replacement module was installed
  - HVBOM may be used to verify correct part number
- verify the configuration of replacement module was correct
  - re-configure module using as-built data if prior configuration is suspect
- verify the module was not obtained from a like vehicle and installed into customer vehicle
  - return the swapped module to source vehicle and obtain new replacement module

Operate the system and determine if the observable symptom is still present.

Is the observable symptom still present?

Yes

GO to M7

No	The system is operating correctly at this time. The concern may have been due to incorrect parts replacement procedures or incorrect module configuration.

M7 CHECK FOR CORRECT PCM (POWERTRAIN CONTROL MODULE) OPERATION

Disconnect and inspect all PCM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the PCM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

VIN required to access Guided Routine (PCM)

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST N: U3003:16

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

The RGTM monitors its high current voltage supply circuit. If a fault is detected, the RGTM disables the power liftgate function.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM U3003:16	Battery Voltage: Circuit Voltage Below Threshold	Sets when the RGTM detects the high current voltage supply circuit is less than 8.8 volts.

Possible Sources

High circuit resistance
Charging system concern
RGTM

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

N1 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be above 8.8 Volts

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to N2

No	REPAIR the circuit.

N2 RECHECK THE RGTM (REAR GATE TRUNK MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)

Ignition ON.

Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs)

Wait 30 seconds.

Using a diagnostic scan tool, carry out the RGTM self-test.

Is DTC U3003:16 still present?

Yes

GO to N3

No	The system is operating normally at this time. The DTC may have been set due to a previous low battery voltage condition.

N3 CHECK FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES

Using a diagnostic scan tool, retrieve the Continuous Memory Diagnostic Trouble Codes (CMDTCs) from all modules.

Is any other battery or charging system related DTC set in other modules?

Yes

Diagnose the charging system concern. REFER to the appropriate Diagnosis and Testing in section 414-00.

GO to N4

N4 CHECK THE BATTERY CONDITION AND STATE OF CHARGE

Ignition OFF.

Check the battery condition and verify the battery is fully charged.
REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).

Is the battery OK and fully charged?

Yes

GO to N5

No	DIAGNOSE the battery. REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).

N5 CHECK THE RGTM (REAR GATE TRUNK MODULE) POWER_SUPPLY_POWER_VBATT (GATE_PWR_V) PID (PARAMETER IDENTIFICATION)

Ignition ON.

Measure and record the voltage at the battery.

Using a diagnostic scan tool, monitor the RGTM Gate_Pwr_V PID .

Is the voltage within 0.2 volt of the recorded battery voltage?

Yes

GO to N8

GO to N6

N6 CHECK THE RGTM (REAR GATE TRUNK MODULE) VOLTAGE SUPPLY CIRCUIT FOR HIGH RESISTANCE

Ignition OFF.

Disconnect RGTM C4174A .

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-2 Ground

Is the voltage within 0.2 volt of the recorded battery voltage?

Yes

GO to N7

No	REPAIR the circuit.

N7 CHECK THE RGTM (REAR GATE TRUNK MODULE) GROUND CIRCUIT FOR HIGH RESISTANCE

Measure:
Click to display connectors

Positive Lead Measurement / Action Negative Lead

C4174A-14 Ground

Is the resistance less than 3 ohms?

Yes

GO to N8

No	REPAIR the circuit.

N8 CHECK FOR CORRECT RGTM (REAR GATE TRUNK MODULE) OPERATION

Disconnect and inspect all RGTM connectors.

Repair:
- corrosion (install new connectors or terminals – clean module pins)
- damaged or bent pins – install new terminals/pins
- pushed-out pins – install new pins as necessary

Reconnect all the RGTM connectors and make sure they seat and latch correctly.

Operate the system and determine if the concern is still present.

Is the concern still present?

Yes

No	The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST O: U3003:17

Refer to Wiring Diagrams Cell 109 for schematic and connector information.

Normal Operation and Fault Conditions

The RGTM monitors its high current voltage supply circuit. If a fault is detected, the RGTM disables the power liftgate function.

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM U3003:17	Battery Voltage: Circuit Voltage Above Threshold	Sets when the RGTM detects the high current voltage supply circuit is more than 16 volts.

Possible Sources

Charging system concern
RGTM

NOTE: DTC U3003:17 may be stored in the module memory due to previous battery charging or vehicle jump starting event.

O1 CHECK THE SYSTEM BATTERY VOLTAGE INPUT TO THE LIFTGATE LATCH

Using a diagnostic scan tool, view the RGTM PID .
- Gate_Lgc_V
- Gate_Pwr_V

Monitor the PID -
- Power voltage supply A and Power voltage supply B must be below 16.5 Volts

Do the Parameter Identifications (PIDs) agree with the liftgate latch status?

Yes

GO to O2

No	REPAIR the circuit.

O2 CHECK FOR OVER VOLTAGE DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES

Ignition ON.

Using a diagnostic scan tool, retrieve the Continuous Memory Diagnostic Trouble Codes (CMDTCs) from all modules.

Are any over voltage Diagnostic Trouble Codes (DTCs) set in other modules?

Yes

DIAGNOSE an overcharging condition. REFER to the appropriate Diagnosis and Testing in section 414-00.

GO to O3

O3 CHECK THE BATTERY VOLTAGE

Turn off all interior/exterior lights and accessories.

Start and run the engine at approximately 2,000 rpm for 3 minutes while monitoring the battery voltage.

Does the battery voltage rise to 15.5 volts or higher?

Yes

DIAGNOSE an overcharging condition. REFER to the appropriate Diagnosis and Testing in section 414-00.

GO to O4

O4 RECHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U3003:17

Ignition OFF.

Ignition ON.

Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs) and repeat the RGTM self-test.

Is DTC U3003:17 still present?

Yes

INSTALL a new RGTM .
REFER to: Rear Gate Trunk Module (RGTM) (501-03 Body Closures, Removal and Installation).

No	The system is operating normally at this time. The DTC may have been set previously during battery charging or while jump starting the vehicle.

PINPOINT TEST P: DTC B1495:55

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
BCM B1495:55	Hands Free Liftgate/Decklid Input Sensor: Not Configured	This DTC sets when the Hands-free liftgate actuation module has not been programmed or incorrectly programmed.

Possible Sources

Hands-free liftgate actuation module

P1 CHECK FOR DTC B1495:55

Ignition ON

Using a diagnostic scan tool, carry out the BCM self test.

Is DTC B1495:55 present?

Yes

CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new BCM. Refer to the appropriate Removal and Installation procedure in Section 419-10.

No	The system is operating correctly at this time. The concern may have been caused due to module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST Q: DTC U3000:49 OR U201A:55 OR U2300:56

Normal Operation and Fault Conditions

REFER to: Body Closures - System Operation and Component Description (501-03 Body Closures, Description and Operation).

DTC Fault Trigger Conditions

DTC	Description	Fault Trigger Condition
RGTM U3000:49	Control Module: Internal Electronic Failure	This DTC sets when the RGTM detects an internal failure
RGTM U201A:55	Control Module Main Calibration Data: Not Configured	This DTC sets when the RGTM has not been programmed or incorrectly programmed.
RGTM U2300:56	Central Configuration: Invalid/Incompatible Configuration	This DTC sets when the RGTM has not been programmed or incorrectly programmed.

Possible Sources

RGTM

Q1 CHECK FOR DTCS U201A:55 OR U2300:56

Check vehicle service history for recent service actions related to the RGTM .

Ignition ON

Using the diagnostic scan tool, clear the DTC .

Wait 10 seconds.

Using a diagnostic scan tool, carry out the RGTM self test.

Is DTCs U3000:49 present?

Yes

INSTALL a new RGTM .
REFER to: Rear Gate Trunk Module (RGTM) (501-03 Body Closures, Removal and Installation).

No	For DTCs U201A:55 or U2300:56, GO to Q2

Q2 INSTALL BCM (BODY CONTROL MODULE) PMI (PROGRAMMABLE MODULE INSTALLATION)

Using a diagnostic scan tool, clear the DTC

Following scan tool instructions, INSTALL BCM As-Built data from PTS .

Is DTCs U201A:55 OR U2300:56 present?

Yes

No	The system is operating correctly at this time. The concern may have been caused due to module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST R: THE POWER LIFTGATE STOPS DURING POWER OPEN OPERATION

Possible Sources

Mechanical binding
The vehicle was started or taken out of park during a power open operation

R1 MANUALLY OPERATE THE LIFTGATE AND CHECK FOR MECHANICAL BINDING.

Is the mechanical binding exists?.

Yes

REPAIR as necessary.

No	If no mechanical binding is found, INITIALIZE the power liftgate. REFER to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).

PINPOINT TEST S: THE POWER LIFTGATE STOPS AND CHIMES AT THE FULL OPEN POSITION

Normal Operation and Fault Conditions

The power liftgate lost its full open position due to a mechanical repair (hinge adjustment, liftgate striker adjustment, liftgate motor adjusted or repaired)

Possible Sources

Hinge adjustment,
Liftgate striker adjustment
Liftgate motor adjusted or repaired

S1 MANUALLY OPERATE THE LIFTGATE AND CHECK FOR POWER LIFTGATE STOPS AND CHIMES AT THE FULL OPEN POSITION.

Is the concern exists?

Yes

INITIALIZE the power liftgate.
REFER to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).

No	The system is operating normally at this time. The power liftgate was not initialized initially.

PINPOINT TEST T: THE POWER LIFTGATE HAS EXCESSIVE NOISE DURING OPERATION

Possible Sources

Mechanical binding
Liftgate alignment

T1 MANUALLY OPERATE THE LIFTGATE AND CHECK FOR EXCESSIVE NOISE DURING OPERATION

Is the mechanical binding exists?.

Yes

REPAIR as necessary.

No	If no mechanical binding is found, ALIGN the liftgate. REFER to: Liftgate Alignment (501-03 Body Closures, General Procedures).

Description and Operation - Body Closures - System Operation and Component Description

S..

General Procedures - Front Door Alignment

Special Tool(s) / General Equipment Interior Trim Remover Inspection NOTE: Removal steps in this procedure may contain installation details...

Other information:

Ford Escape 2020-2024 Service Manual: Description and Operation - Electric Powertrain Control - System Operation and Component Description

System Operation System Diagram Item Description 1 BECM 2 DC/DC 3 ECM 4 BCM 5 AWD 6 GWM 7 ISC 8 APIM 9 BCMC 10 SOBDM 11 Transmission 12 Resolver Generator 13 Resolver Motor 14 Gear Shift Module Network Message Chart - Inverter System Controller (ISC) Broa..

Ford Escape 2020-2024 Service Manual: General Procedures - Finish Panel Repair

Repair NOTE: Mouldings located on the front and rear window frames may experience minor scratches from vehicle shipment or car wash racks. The imperfections may be repaired instead of replacing components by following the steps below. NOTE: Scratches deep enough to cause a thumb nail to catch cannot be repaired and the component must be replaced. Clean with a mild soap and wate..

Engine Oil

Engine Oil Dipstick Overview

Ford Escape. Engine Oil

Minimum. Maximum.

Ford Escape: Body Closures / Diagnosis and Testing - Body Closures

Description and Operation - Body Closures - System Operation and Component Description

General Procedures - Front Door Alignment

Other information:

Ford Escape 2020-2024 Service Manual: Description and Operation - Electric Powertrain Control - System Operation and Component Description

Ford Escape 2020-2024 Service Manual: General Procedures - Finish Panel Repair

Categories

Engine Oil
