Ford Escape: Parking Aid - Vehicles With: Active Park Assist / Description and Operation - Parking Aid - Component Location
Component Location - Active Park Assist
Item |
Description |
1 |
Rear side sensors |
2 |
Active park assist switch |
3 |
Front active park assist sensors |
4 |
PAM
|
Overview - Active Park Assist
The
active park assist system is a full-assisted parking system. The system
assists parking into and out (assist out of parking spots only
available for parallel parking) of parking spaces...
Other information:
System Operation
Parking Aid - Audible
System Diagram
Item
Description
1
Rear door speakers
2
Front door speakers
3
TRM
4
BCM
5
PCM
6
DSP
7
ACM
8
IPC
9
APIM
10
ABS module
11
with 10 speaker system
12
GWM
13
PSCM
14
PAM
15
Right front ..
Removal

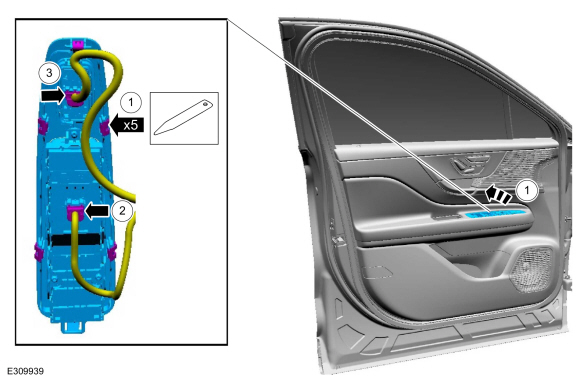

Release the clips and remove the trim panel.
Remove the bolts and the display unit.
Disconnect the electrical connector.
Torque:
22 lb.in (2.5 Nm)
Remove the bolts, release the clips and remove the center instrument panel trim panel.
Disconnect the electrical connector.
Torque:
22 lb.in (..
