Ford Escape: Information and Entertainment System - General Information / Description and Operation - Information and Entertainment System - Component Location
NOTE: The available speaker configurations are shown first. The remaining hidden audio and SYNC system components and various cable routings follow the speaker configurations.
NOTE: Some vehicles may not be equipped with all the optional components shown.
6 Speaker System
.jpg)
| Item | Description |
|---|---|
| 1 | Instrument panel left/right speakers |
| 2 | Left/right front door speakers |
| 3 | Left/right rear door speakers |

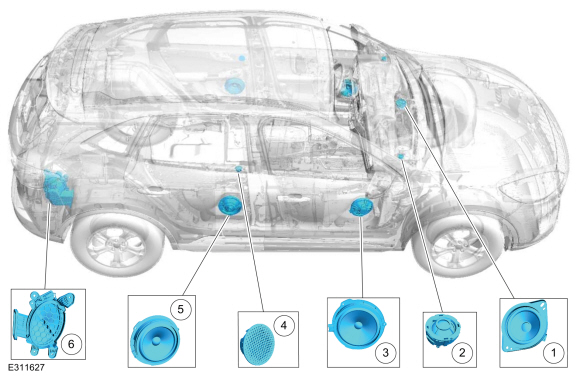

10 Speaker System
.jpg)
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker |
| 2 | Instrument panel left/right speakers |
| 3 | Left/right front door speakers |
| 4 | Left/right rear door tweeter speakers |
| 5 | Left/right rear door woofer speakers |
| 6 | Subwoofer speaker |
Audio/SYNC System Hidden Components
.jpg)
| Item | Description |
|---|---|
| 1 | Noise filter |
| 2 | AM / FM 1 antenna amplifier |
| 3 | Voice microphone |
| 4 | TCU antenna |
| 5 | APIM |
| 6 | TCU |
| 7 | ACM |
| 8 | USB hub |
| 9 | DSP |
USB Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front USB cable |
| 2 | Rear USB cable |
| 3 | USB cable in-line connection |

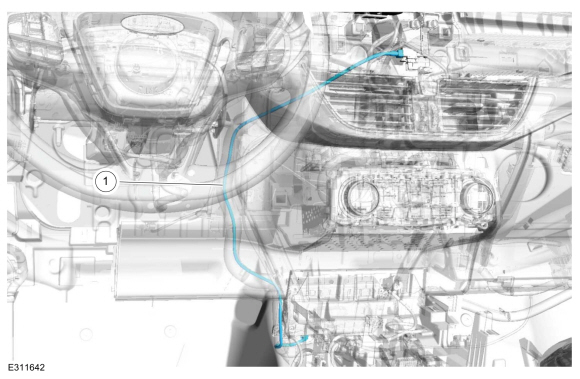

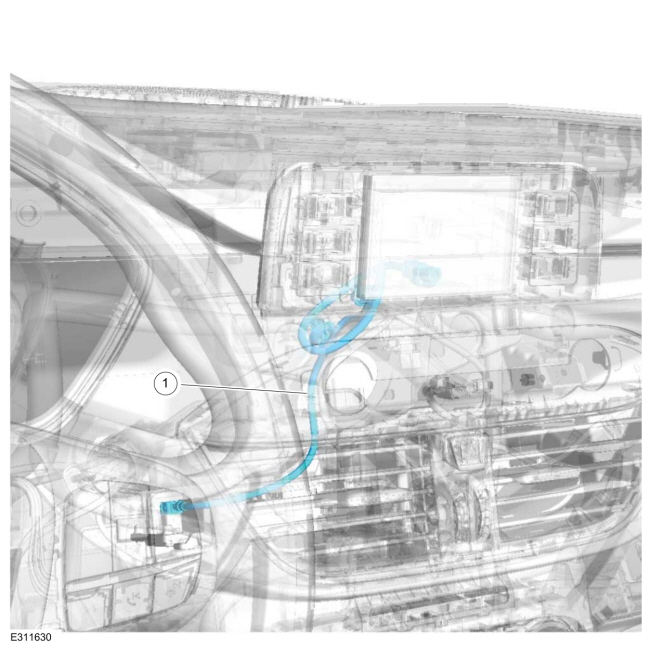

LVDS Cable Routing - Non-Touchscreen
.jpg)
| Item | Description |
|---|---|
| 1 | LVDS cable |

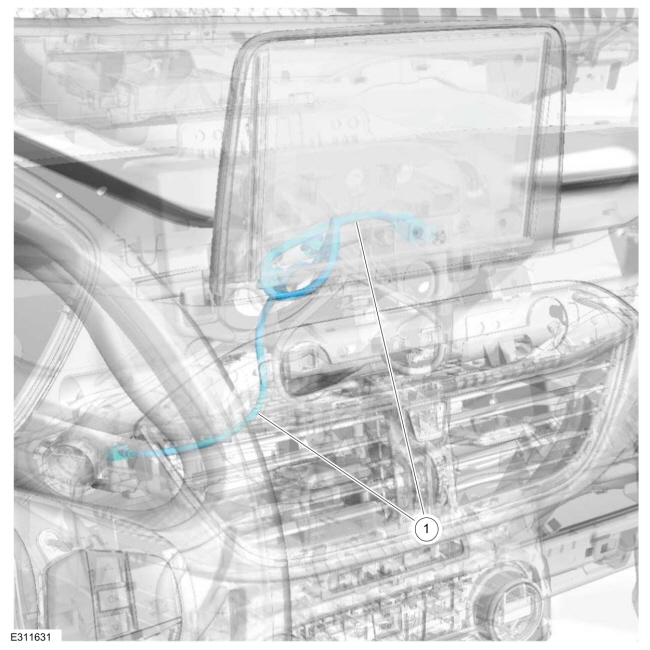

LVDS Cable Routing - Touchscreen
.jpg)
| Item | Description |
|---|---|
| 1 | LVDS cable |

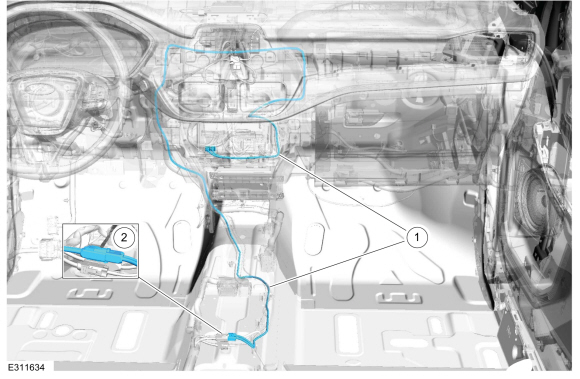

Front Automobile Audio Bus (A2B) Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front Automobile Audio Bus (A2B) cable |
| 2 | Automobile Audio Bus (A2B) cable in-line connection |

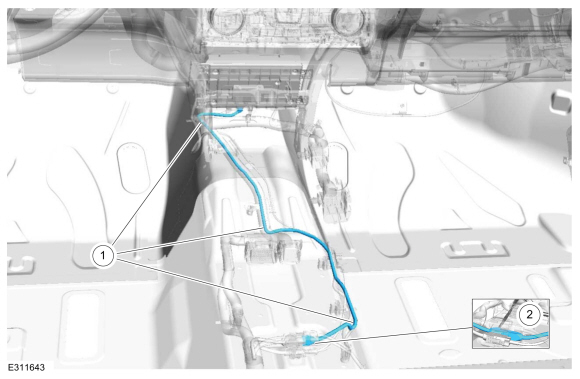

Rear Automobile Audio Bus (A2B) Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Automobile Audio Bus (A2B) cable in-line connection |
Front AM / FM 1 Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front AM / FM 1 antenna cable |
| 2 | Front AM / FM 1 antenna cable in-line connection |

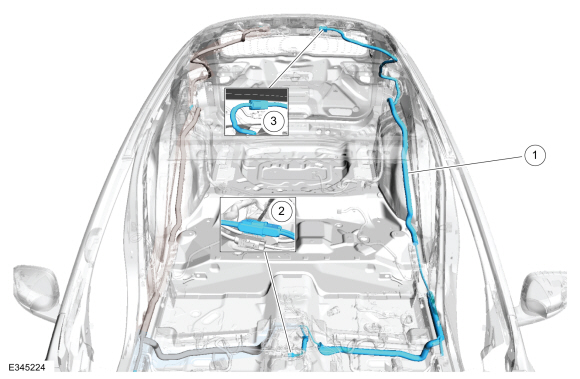

Center AM / FM 1 Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Center AM / FM 1 antenna cable |
| 2 | Front AM / FM 1 antenna cable in-line connection |
| 3 | Rear AM / FM 1 antenna cable in-line connection |

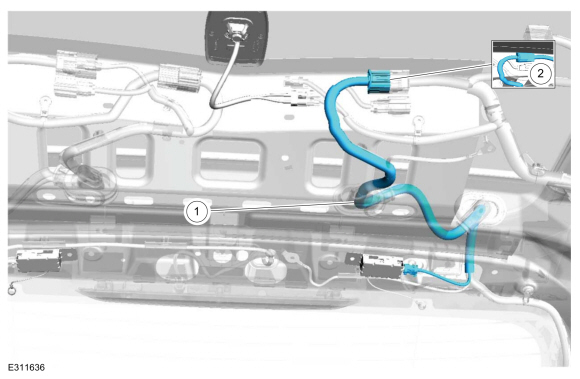

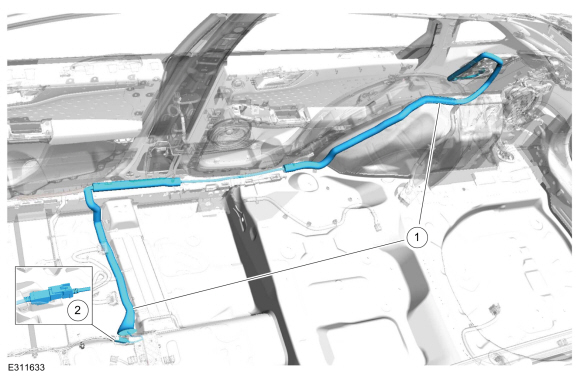

Rear AM / FM 1 Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Rear AM / FM 1 antenna cable |
| 2 | Rear AM / FM 1 antenna cable in-line connection |

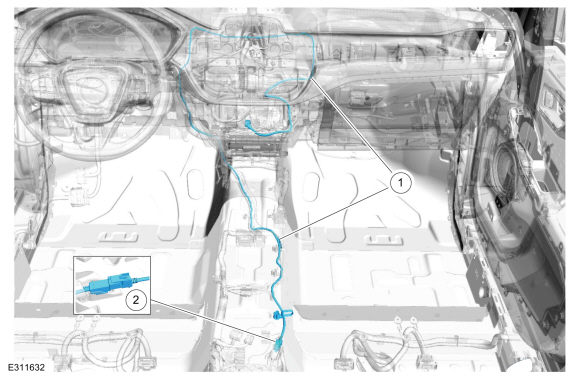

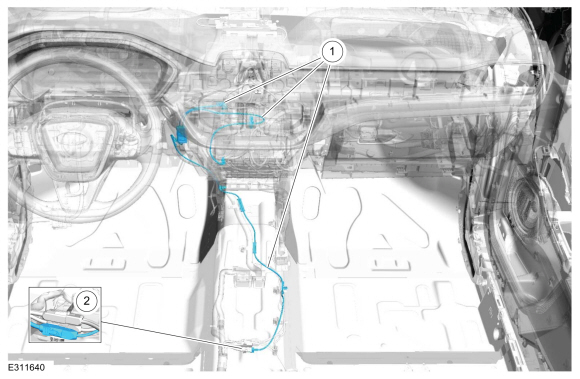

Front GPS Antenna Cable Routing - Vehicles Not Equipped With Satellite Radio
.jpg)
| Item | Description |
|---|---|
| 1 | Front GPS antenna cable |
| 2 | GPS antenna cable in-line connection |
Front GPS Antenna Cable Routing - Vehicles Equipped With Satellite Radio
.jpg)
| Item | Description |
|---|---|
| 1 | Front GPS antenna cable |
| 2 | GPS antenna cable in-line connection |

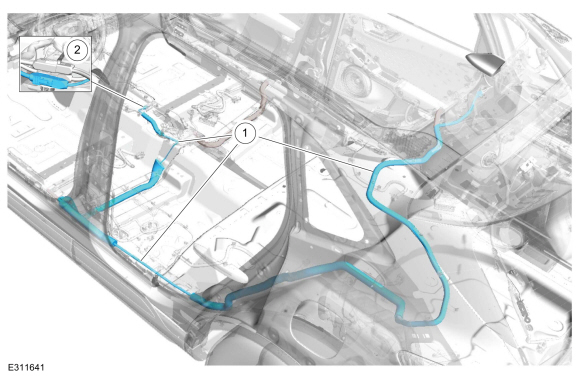

Rear GPS /Satellite Radio/Cellular Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Rear GPS /satellite radio/cellular antenna cable |
| 2 | GPS antenna cable in-line connection |
Secondary Cellular (TCU ) Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Secondary cellular (TCU ) antenna cable |

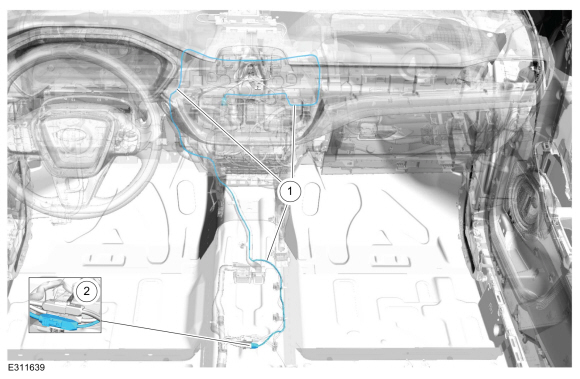

Front Primary Cellular Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front primary cellular antenna cable |
| 2 | Primary cellular antenna cable in-line connection |
Description and Operation - Information and Entertainment System - Overview
Audio System
NOTE:
Refer to the Owner Literature for additional details of the audio system.
AM / FM Radio
The ACM
can operate when the ignition is on or off...
