Ford Escape: Exterior Trim and Ornamentation / Removal and Installation - Roof Rail

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. On both sides.
    Remove the nuts.
    Torque: 89 lb.in (10 Nm)

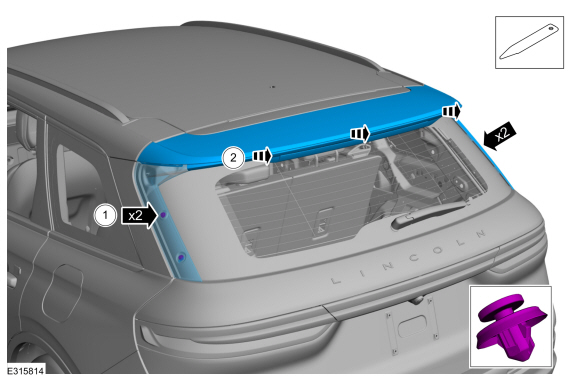

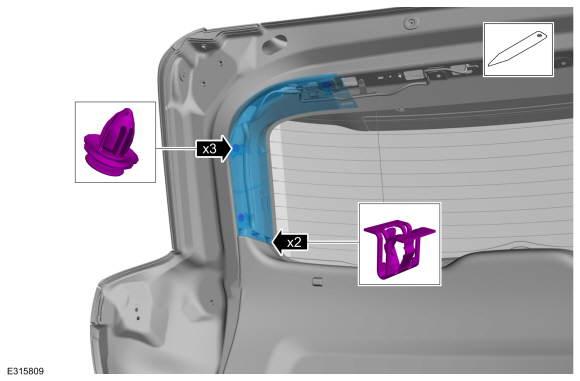

  1. Remove the liftegate hinge cover and roof rail.

Installation

  1. To install, reverse the removal procedure.
