Ford Escape: Body Closures / Removal and Installation - Rear Gate Trunk Module (RGTM)
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
This step is only necessary when installing a new component.
The PMI process must begin with the current RGTM installed. If the
current RGTM does not respond to the diagnostic scan tool, the tool may
prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the RGTM
following the on-screen instructions.
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

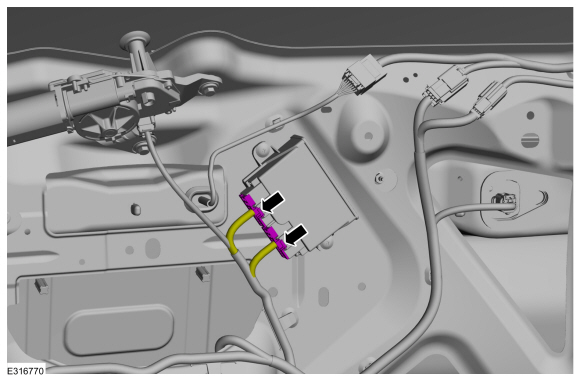

Disconnect the electrical connectors.
-

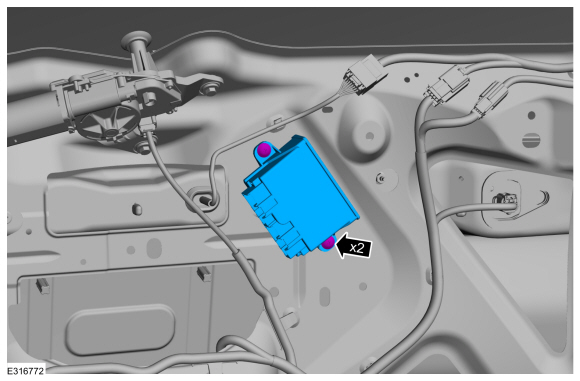

Remove the fasteners and the RGTM .
Installation
-
To install, reverse the removal procedure.
-
Using a diagnostic scan tool, complete the PMI process for the RGTM following the on-screen instructions.
