Ford Escape: Steering Wheel and Column Electrical Components / Removal and Installation - Ignition Switch

Removal

  1. Remove the center registers.
    Refer to: Center Registers (412-00 Climate Control System - General Information, Removal and Installation).

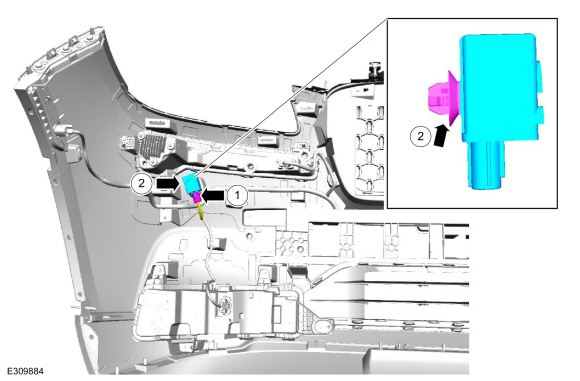

  1. Disconnect the ignition switch electrical connector.

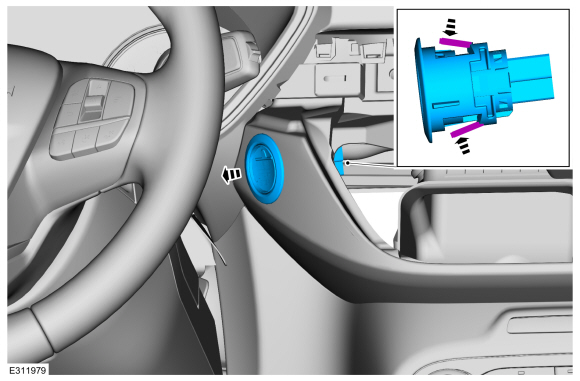

  1. Release the locking tabs and remove the ignition switch.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Ignition Switch

    Removal Remove the steering column shrouds. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation)...

    Removal and Installation - Steering Column Multifunction Switch LH

    Removal Remove the steering column shrouds. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation)...
