Ford Escape: Steering Wheel and Column Electrical Components / Removal and Installation - Ignition Switch

Removal

  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
    1. Disconnect the electrical connector.
    1. Release the tabs and remove the ignition switch.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Ignition Lock Cylinder Housing

    Removal Remove the SCCM . Refer to: Steering Column Control Module (SCCM) (211-05 Steering Wheel and Column Electrical Components, Removal and Installation)...

    Removal and Installation - Ignition Switch

    Removal Remove the center registers. Refer to: Center Registers (412-00 Climate Control System - General Information, Removal and Installation)...

    Other information:

    Ford Escape 2020-2025 Service Manual: Description and Operation - Transmission Description - Overview


    Transmission Overview The Electronically Controlled Continuously Variable Transmission (eCVT) has the following internal components: Traction Motor Generator/Starter High voltage terminals Pump and filter assembly Park lock actuator TFT sensor Planetary carrier Differential carrier High voltage inductor Transmission fluid auxiliary pump ..

    Ford Escape 2020-2025 Service Manual: Removal and Installation - Front Door Window Regulator Motor

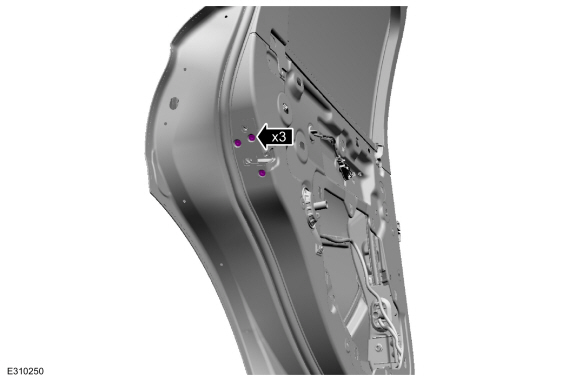

    Removal NOTE: Left hand (LH) shown, right hand (RH) similar. NOTE: For front door window regulator motors that are non-functional it may be necessary to remove the front door window regulator motor prior to securing the front door window glass. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
