Ford Escape: Bumpers / Removal and Installation - Front Bumper Cover
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
On both sides.

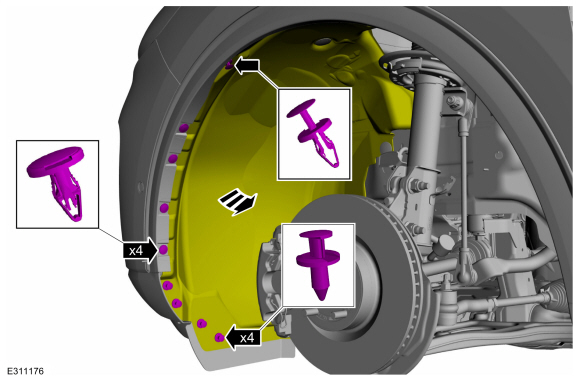

Remove the push pins and position the fender liner aside.
-
On both sides.
Release the retainers, release the clips and position front fender moulding aside.
Use the General Equipment: Interior Trim Remover
-

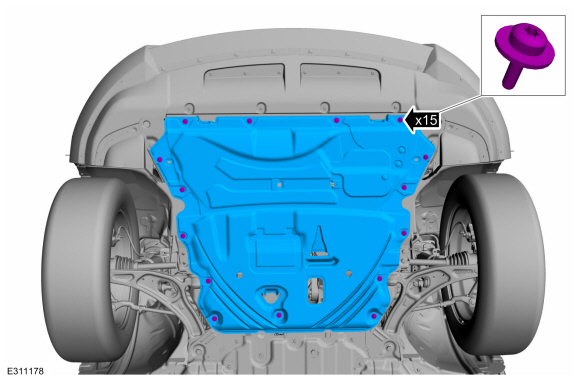

Remove the screws and the engine undershield.
Torque:
18 lb.in (2 Nm)
-

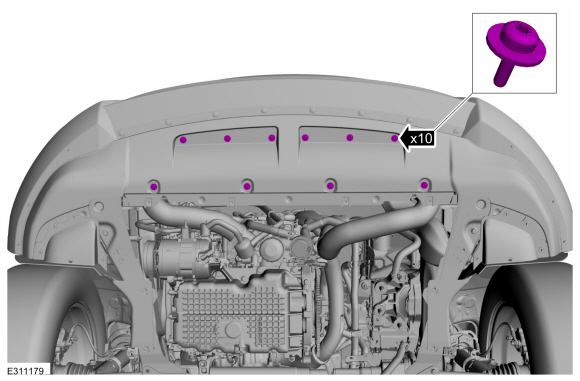

Remove the screws.
Torque:
18 lb.in (2 Nm)
-

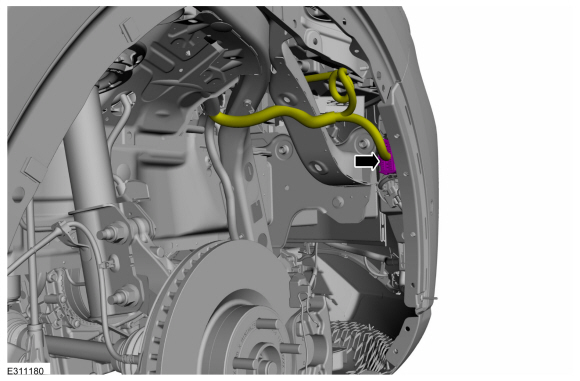

Disconnect the front bumper cover harness electrical connector.
-
On both sides.

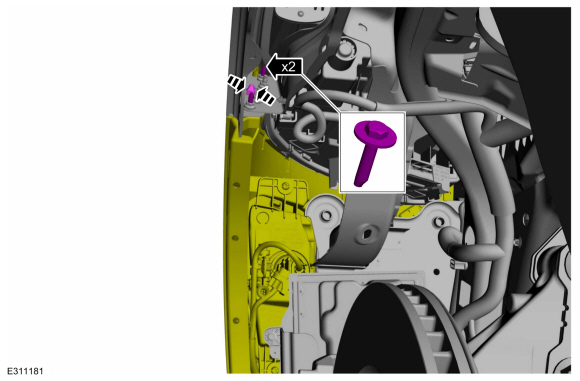

Remove the front bumper cover to fender bracket bolts and release the tab.
Torque:
71 lb.in (8 Nm)
-
With the help of an assistant.

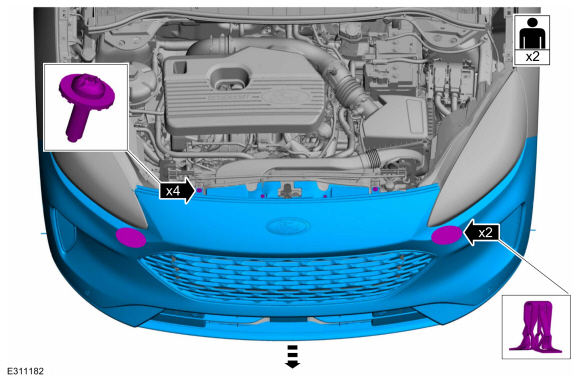

Remove the screws, release the clips and remove the front bumper cover.
Torque:
35 lb.in (4 Nm)
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation)...
