Ford Escape: Engine Cooling / Removal and Installation - Degas Bottle
Special Tool(s) /
General Equipment
Fluid Suction Gun |
Hose Clamp Remover/Installer |
Locking Pliers |
Removal
WARNING:
Always allow the engine to cool before opening the cooling
system. Do not unscrew the coolant pressure relief cap when the engine
is operating or the cooling system is hot. The cooling system is under
pressure; steam and hot liquid can come out forcefully when the cap is
loosened slightly. Failure to follow these instructions may result in
serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
When releasing the cooling system pressure, cover
the coolant expansion tank cap with a thick cloth to prevent the
possibility of scalding. Failure to follow this instruction may result
in personal injury.

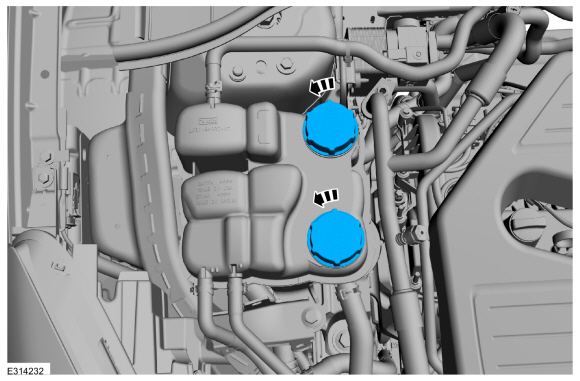

Release the cooling system pressure by slowly turning
the degas bottle caps between 2 and 3 turns and remove the degas bottle
caps.
-
Using general tools, clamp the lower coolant hoses and syphon the engine coolant from the degas bottle.
Use the General Equipment: Fluid Suction Gun
Use the General Equipment: Locking Pliers
-
Release the clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer
-
-
Remove the bolt.
Torque:
35 lb.ft (47.5 Nm)
-
Loosen the bolt and position aside the degas bottle support bracket.
Torque:
35 lb.ft (47.5 Nm)
-
-
Release the tabs and remove the degas bottle.
-
Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer
Installation
-
To install, reverse the removal procedure.
-
Fill the degas bottle with the recommended coolant mixture and fill level.
Refer to: Specifications (303-03C Engine Cooling, Specifications).
