Ford Escape: Multifunction Electronic Modules / Removal and Installation - Body Control Module C (BCMC)
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
If the BCMC (body control module C) did not respond
to the diagnostic scan tool, As-Built Data may need to be entered as
part of the repair. This step is only necessary if the BCMC (body
control module C) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
Remove the LH fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
-

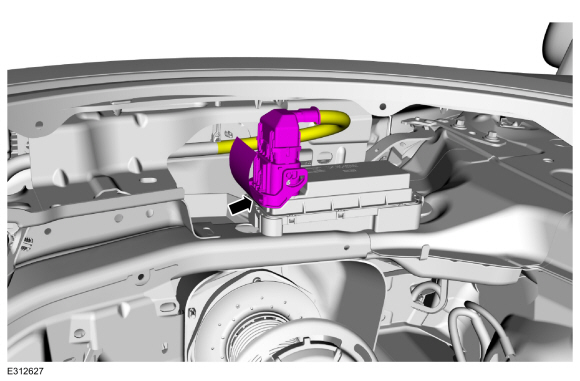

Disconnect the BCMC wiring connector.
-

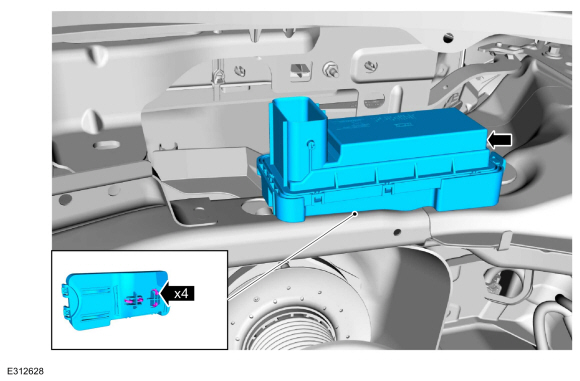

Gently release the clips and remove the BCMC .
Installation
-
To install, reverse the removal procedure.
-
NOTE:
Carry out this step only if the BCMC (body control module C) is being replaced.
Using a diagnostic scan tool, complete the PMI process for the BCMC following the on-screen instructions.
