Ford Escape: Seatbelt Systems / General Procedures - Seatbelt Twisted at the Seatbelt Guide

Adjustment

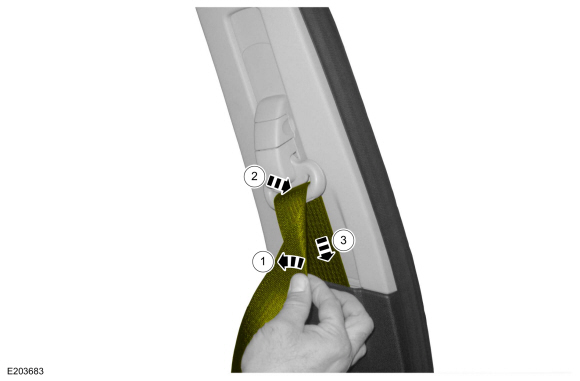

NOTE: Typical D-ring shown, others similar.

If required, remove the necessary trim panel(s).

1. Fold the seatbelt as indicated.
1. Feed the folded portion of the seatbelt into the D-ring.
1. Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
