Ford Escape: Lane Keeping System / Description and Operation - Lane Keeping System - Component Location

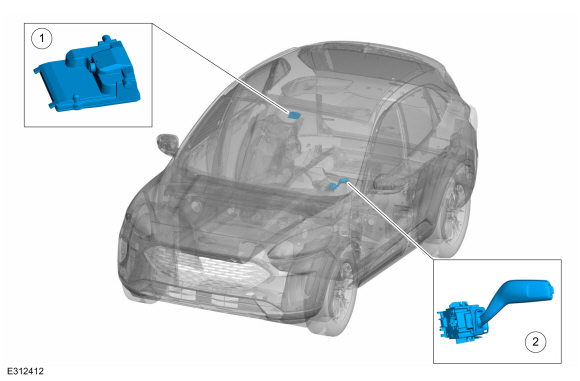

Component Location - Lane Keeping System
Item |
Description |
1 |
IPMA
|
2 |
Lane Keeping System (LKS) switch (integral to the LH steering column multifunction switch)
|
Overview
The
Lane Keeping System (LKS) has 2 functions, lane keeping aid and lane
keeping alert. The Lane Keeping System (LKS) utilizes the camera located
in the IPMA to detect
and track the road lane markings...
