Ford Escape: Charging Your Vehicle - Plug- In Hybrid Electric Vehicle (PHEV) / AC Charging

Connecting the Charger

Ford Escape. AC Charging To charge the high-voltage battery:

  1. Put the vehicle in park (P).

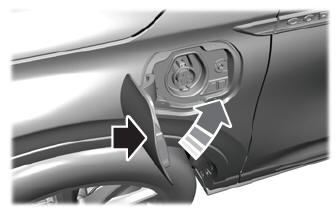

  2. Press the center right edge of the charge port door and then release to open the door.

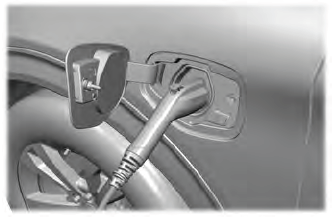

  3. Plug the charging coupler into the charge port receptacle on your vehicle. Make sure the button clicks confirming that you have completely engaged the coupler.

    Ford Escape. AC Charging

  4. Verify that the cord acknowledgment feature activates. This indicates the beginning of a normal charge cycle. The charge status indicator lights up each zone alternately from bottom to top and from bottom to top again.
  5. If using a charging station, follow the instructions on the charge station to begin the charging process.

Ford Escape. AC Charging

Note: You can identify charging faults by the color orange on the charge status indicator. Faults can occur within the vehicle charging system or outside the vehicle, such as with the charge cord, charge station or electrical supply.

Note: If the system detects a fault in the vehicle charging system at any point in a charge cycle, the entire charge status indicator lights up solidly in an orange color for 30 seconds and then turns off. If this happens, unplug the charging coupler and then plug it back into the charge port receptacle. If the problem persists, have your vehicle checked as soon as possible.

Note: If the system detects a fault outside the vehicle, such as with the charge station or charge cord, the entire charge status indicator flashes continuously for 30 seconds and then turns off. If this happens, check the charge cord and the charge station or electrical supply.

Note: Put your vehicle in park (P) to charge, and for the charge status indicator to illuminate.

Locking the Charging Coupler

Ford Escape. AC Charging

Note:You need a padlock or a combination lock with a shackle diameter of 0.2 in (5 mm) or less, and the straight portion of the shackle of 1.0 in (25.4 mm) of length or more.

  1. Insert the lock through the hole in the charging coupler button.
  2. Lock the padlock or combination lock.

Stopping Charging

  1. If you have installed a padlock or combination lock, then remove it.

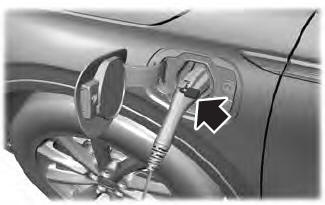

  2. Press the button on the charging coupler.
  3. While holding the button, remove the charging coupler from the charge port receptacle.

    Ford Escape. AC Charging

  4. Press the center right edge of the charge port door to close.

Note: Do not pull the wall plug from the wall when your vehicle is charging. Doing so could damage the outlet and the cord.

    Locating the Charge Port. Charge Port Indicators

    Locating the Charge Port The charge port is between the front left-hand side door and the front left-hand wheel well. To open, press the center right edge of the charge port door, and then release...

    Setting the Charging Schedule and Preferences

    Note: Select charge settings on the home page of the touchscreen or under the vehicle settings menu to access charge preferences. Charging may not begin upon plugging in if you have set up preferred charge times for this vehicle location...
