Ford Escape: Seatbelt Systems / Removal and Installation - Rear Seatbelt Buckle RH

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the RH rear seat cushion.
    Refer to: Rear Seat Cushion Cover (501-10B Rear Seats, Removal and Installation).

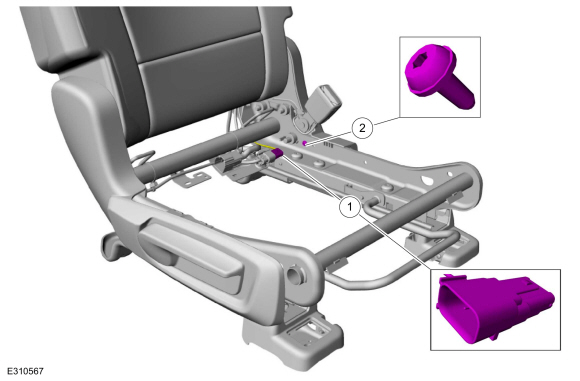

    1. Disconnect the RH seatbelt buckle electrical connector.
    1. Remove the RH rear seat recline cover screw.

  1. Remove the RH rear seat recline cover.
    1. Remove the retainer.
    1. Position the RH rear seat recline cover out and up.

  1. Remove the RH seatbelt buckle.
    1. Detach the wiring harness retainers.
    1. Remove the bolt.
      Torque: 30 lb.ft (40 Nm)

Installation

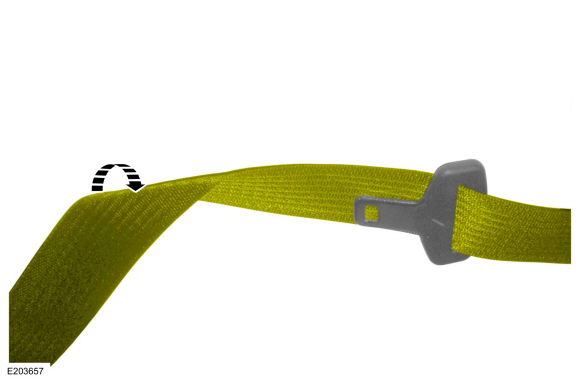

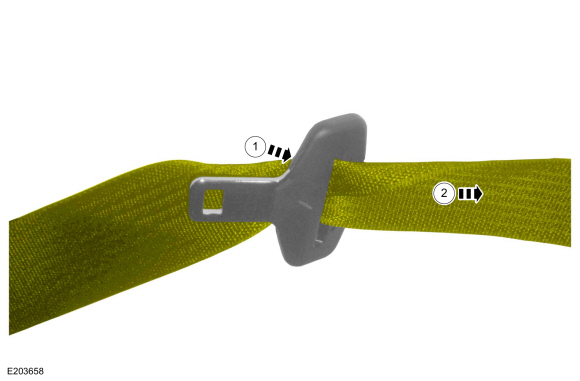

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

  1. To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt System Functional Tests (501-20A Seatbelt Systems, General Procedures).
