Ford Escape 2020-2025 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: 180 Degree Camera/360 Degree Camera/Parking Aid Camera / Removal and Installation - Rear Parking Aid Camera

Ford Escape: Parking Aid - Vehicles With: 180 Degree Camera/360 Degree Camera/Parking Aid Camera / Removal and Installation - Rear Parking Aid Camera

Removal

Remove the liftgate lower interior trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

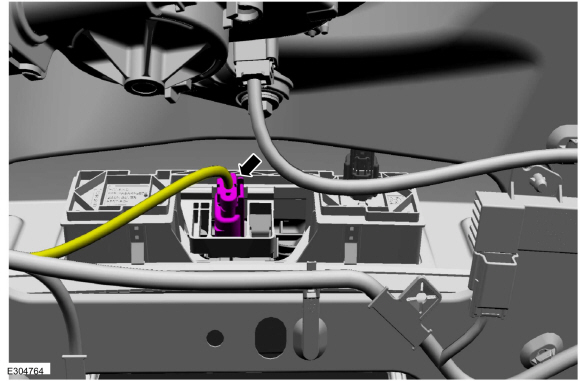

Disconnect the electrical connector.

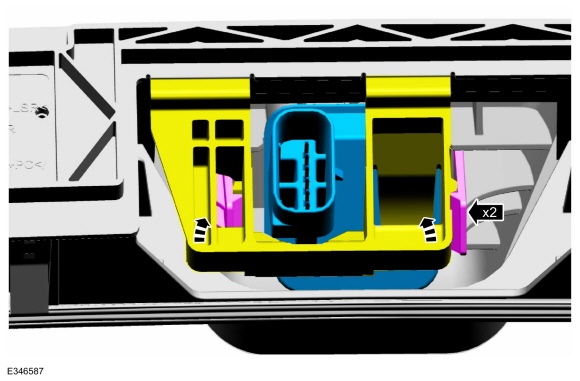

Release the tabs, position the retaining plate and remove the rear view camera.

Installation

To install, reverse the removal procedure.

Initialize the rear view camera.
Refer to: Parking Aid Camera Initialization (413-13B Parking Aid - Vehicles With: 180 Degree Camera/360 Degree Camera/Parking Aid Camera, General Procedures).

General Procedures - Parking Aid Camera Initialization

NOTE: On vehicles equipped with Trailer Reverse Guidance (TRG) complete this procedure and also perform the Trailer Reverse Guidance camera alignment...
