Ford Escape: Parking Brake and Actuation / Removal and Installation - Parking Brake Actuator Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

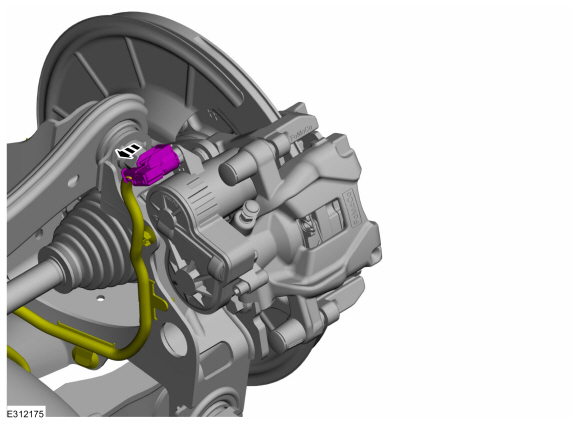

  1. Disconnect the electrical connector and detach the wiring retainer.
  1. NOTE: Once the actuator motor is removed, if there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

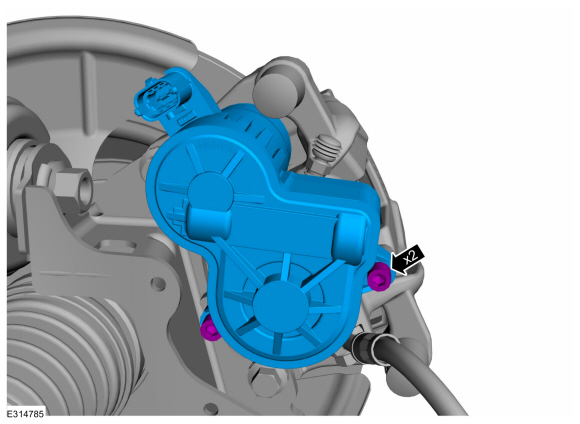

    Remove the bolts and using a twisting motion, remove the parking brake actuator motor. Discard the bolts.
    Torque: 71 lb.in (8 Nm)
  1. Remove and discard the O-ring.
  1. Clean the brake caliper housing O-ring groove and apply the grease supplied with the parking brake actuator motor kit to the drive shaft end only.

Installation

  1. NOTE: Use grease from service kit and new bolts supplied with the parking brake actuator motor kit.

    To install, reverse the removal procedure.

    General Procedures - Electronic Parking Brake (EPB) Manual Release

    Activation NOTE: If the EPB cannot be released using the switch carry out the following procedure. If the battery is dead, jump start the battery to provide power and release the EPB using the switch...

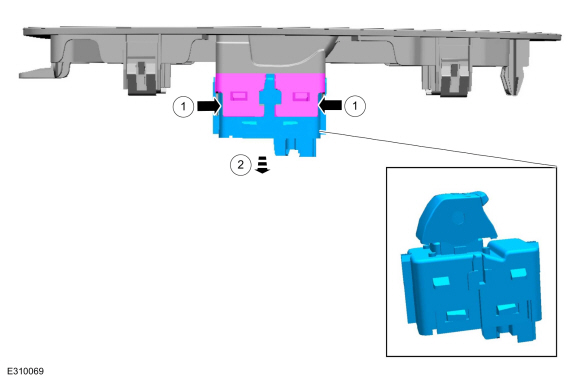

    Removal and Installation - Parking Brake Switch
