Ford Escape: Fuel Tank and Lines / Removal and Installation - Fuel Level Sender

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the fuel pump sender unit.
  1. Disconnect the electrical connector.
    1. NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

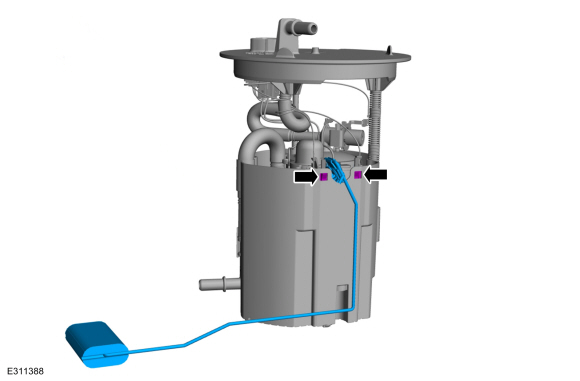

      Release the retainer tab.
    1. Remove the Fuel Level Sender.

Installation

  1. To install, reverse the removal procedure.

    Diagnosis and Testing - Fuel Tank and Lines

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Removal and Installation - Fuel Lines

    Removal   WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component...
