Ford Escape 2020-2025 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Fuel Filler Door

Ford Escape: Body Closures / Removal and Installation - Fuel Filler Door

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Removal

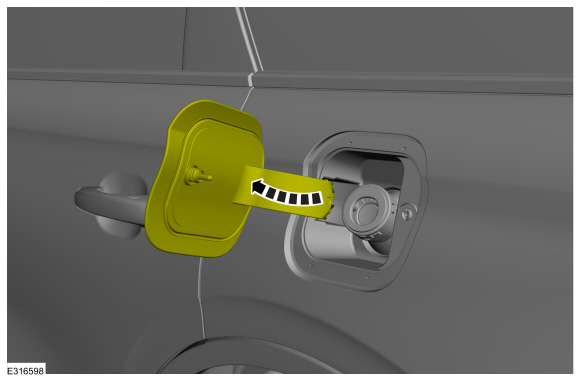

  1. Open the fuel filler door.

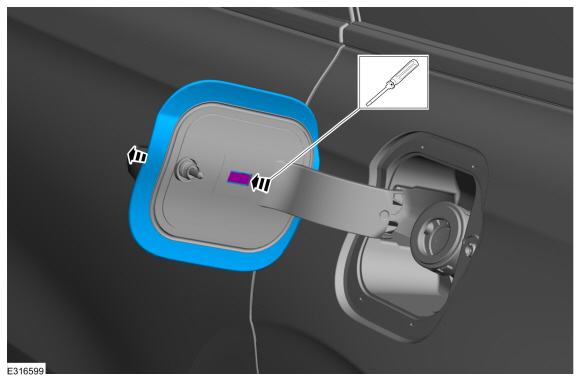

  1. Release the retaining tab and slide the fuel filler door from the fuel filler door hinge.
    Use the General Equipment: Flat Headed Screw Driver

Installation

  1. To install, reverse the removal procedure.
