Ford Escape: Front Seats / Removal and Installation - Front Seat Cushion Cover
Special Tool(s) /
General Equipment
Removal
Passenger seat
-
Remove the OCS sensor.
Refer to: Occupant Classification System (OCS) Sensor (501-20B Supplemental Restraint System, Removal and Installation).
Driver seat
-
Remove the front seat.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
-

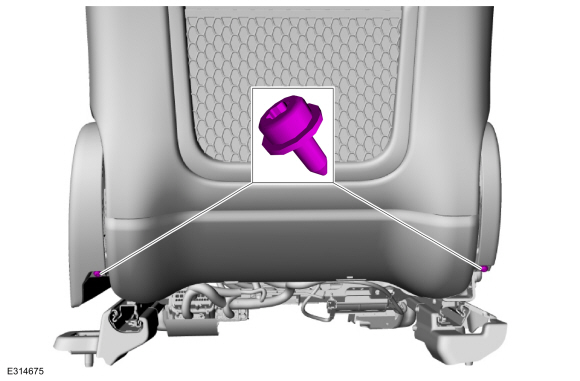

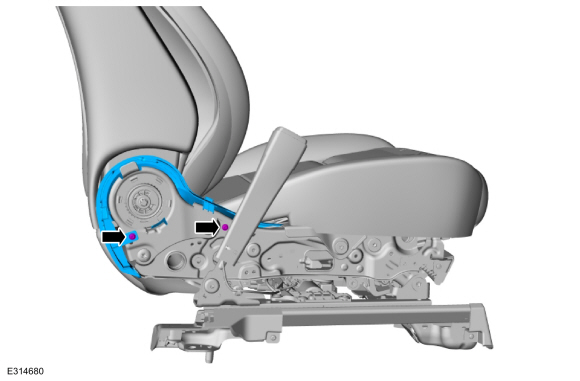

Remove the front seat side shield screws.
-
-

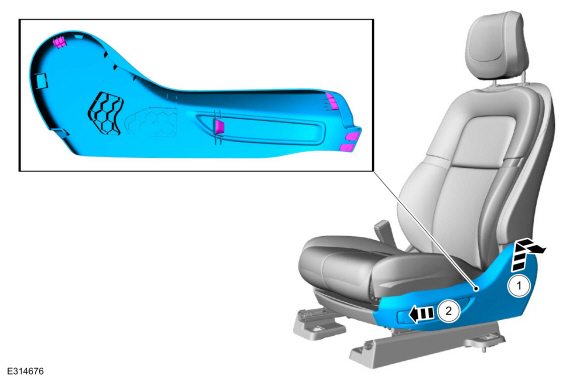

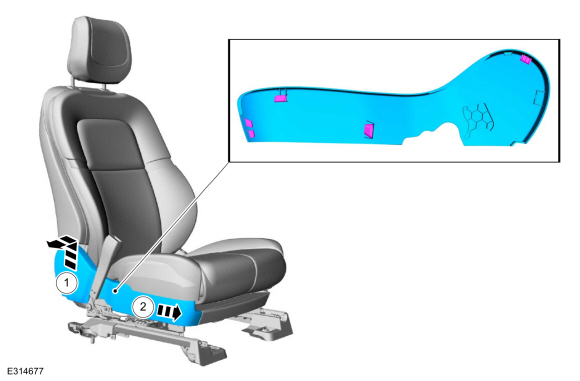

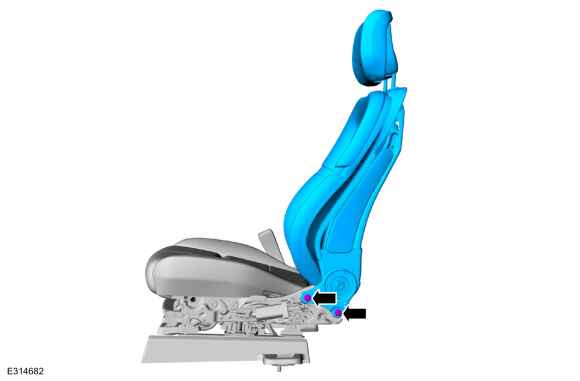

Firmly grasp the front seat side shield, lift up
and out, separating the side shield from the recliner bracket.
-
Slide the front seat side shield forward and separate the side shield from the seat.
-
Disconnect the electrical connector and remove the front seat side shield.
vehicles with heated seats
-
-

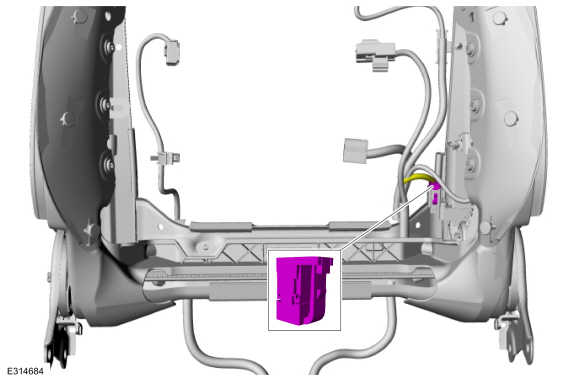

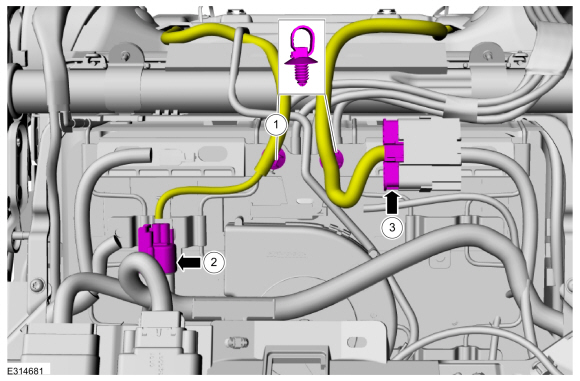

Detach and disconnect the front seat cushion heater mat electrical connector.
-
Detach and disconnect the front seat backrest heater mat electrical connector.
Driver seat
-
-

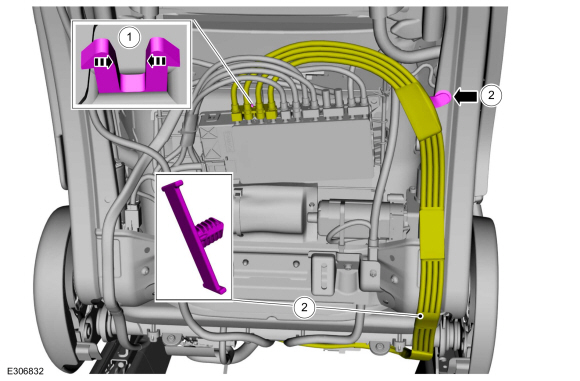

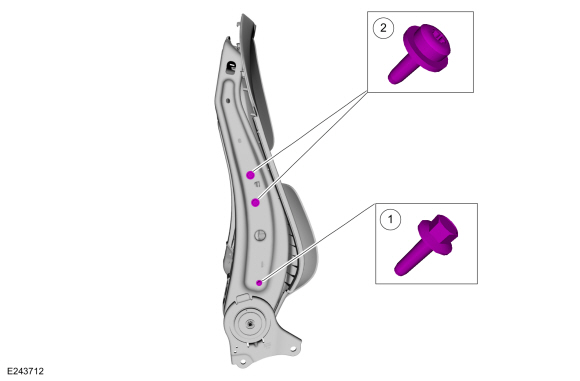

Detach the front seat backrest cover straps.
-
Position the front seat backrest cover aside.
-
-

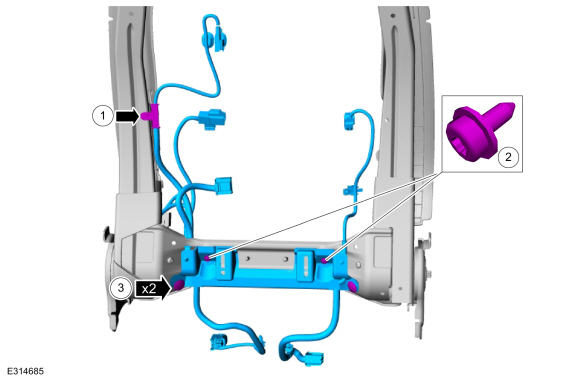

Detach the front seat cushion heater mat wiring harness retainer and position aside.
-
Detach the front seat cushion cover J-clips and position the cover aside.
-
Remove the front seat cushion cover and foam as an assembly.
-
Detach the cushion cover J-clip.
-
On both sides.
Detach the cushion cover J-clips.
All seats
-
NOTE:
This step is only necessary when installing a new component.
-
If equipped with heated seat.
Route the front seat cushion heater mat wiring harness through the cushion cover.
-
Position the rear portion of the front seat cushion cover from the foam.
-
NOTE:
This step is only necessary when installing a new component.
Remove the front seat cushion cover.
-
Invert the cushion cover.
-
Remove the hog rings.
Installation
-
To install, reverse the removal procedure.
-
Use the General Equipment: Hog Ring Plier
