Ford Escape: Climate Control System - General Information / Removal and Installation - Blower Motor Control Module
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Release the clips and remove the lower insulation panel.
-

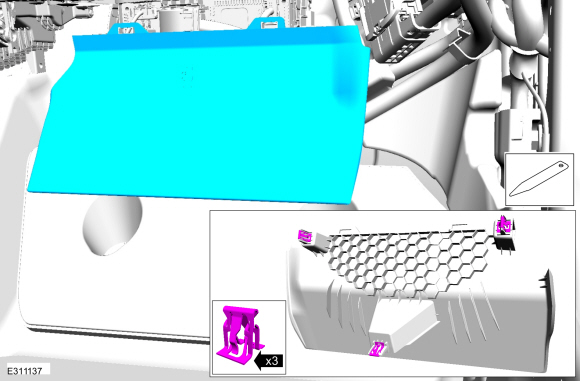

Release the clips and remove the trim panel.
-
Remove the retainers and remove the foam pad.
-
Disconnect the electrical connectors and release the harness retainers.
-
Remove the nuts and the BCM .
Torque:
62 lb.in (7 Nm)
-
Remove the screws and the blower motor control module.
-
Detach the harness retainer and disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...
Removal
Release the stop tabs.
Remove the dampener and fully lower the glove compartment.
Remove the screws and open the cabin air filter door...
