Ford Escape 2020-2024 Service Manual / Powertrain / Engine / Engine Cooling / Description and Operation - Engine Cooling - Component Location
Ford Escape: Engine Cooling / Description and Operation - Engine Cooling - Component Location

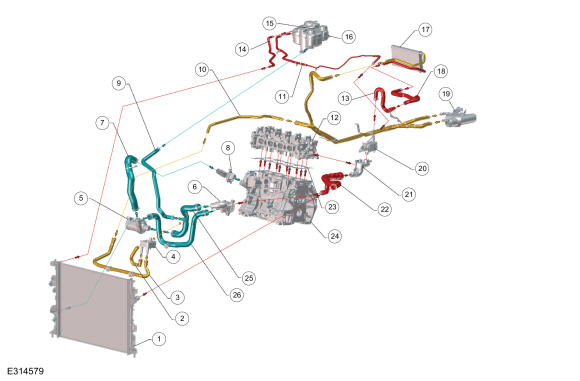

NOTE: Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 90° C (194° F), Orange arrows indicate a temperature of approximately 90° C (194° F), Blue arrows indicate a temperature below 90° C (194° F).
.jpg)
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Engine oil cooler outlet hose |
| 3 | Engine oil cooler inlet hose |
| 4 | Engine oil cooler (If equipped) |
| 5 | Coolant pump |
| 6 | Thermostat housing |
| 7 | Coolant outlet hose |
| 8 | Cylinder block cooler pump hole cover |
| 9 | Degas bottle-to-engine hose |
| 10 | High voltage battery cooler upper hose |
| 11 | Degas bottle hose connector |
| 12 | Cylinder head |
| 13 | EGR cooler outlet hose |
| 14 | Radiator overflow hose |
| 15 | Pressure relief cap |
| 16 | Degas bottle |
| 17 | Heater core |
| 18 | Heater core inlet hose |
| 19 | Exhaust heat exchanger |
| 20 | EGR cooler |
| 21 | Coolant outlet connector adapter |
| 22 | Upper radiator hose |
| 23 | Cylinder head gasket |
| 24 | Cylinder block |
| 25 | Coolant inlet hose |
| 26 | Lower radiator hose |

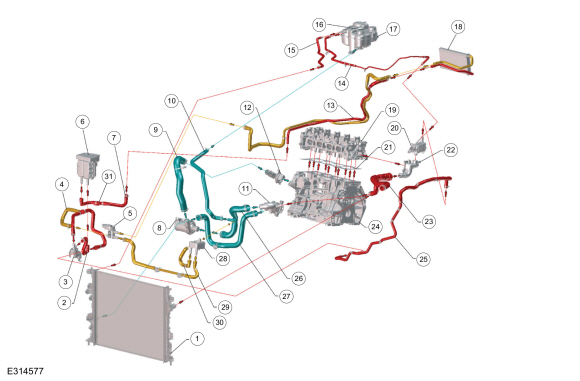

PHEV
.jpg)
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Cabin heater coolant pump outlet hose |
| 3 | Cabin heater coolant pump |
| 4 | Cabin heater coolant pump inlet hose |
| 5 | Transmission fluid cooler coolant control valve |
| 6 | Cabin coolant heater |
| 7 | Cabin coolant heater outlet hose |
| 8 | Coolant pump |
| 9 | Coolant outlet hose |
| 10 | Degas bottle-to-engine hose |
| 11 | Thermostat housing |
| 12 | Cylinder block coolant pump hole cover |
| 13 | High voltage battery cooler upper hose |
| 14 | Degas bottle hose connector |
| 15 | Radiator overflow hose |
| 16 | Pressure relief cap |
| 17 | Degas bottle |
| 18 | Heater core |
| 19 | Cylinder head |
| 20 | EGR cooler |
| 21 | Cylinder head gasket |
| 22 | Cooler outlet connector adapter |
| 23 | Upper radiator hose |
| 24 | Cylinder block |
| 25 | Heater hose assembly |
| 26 | Coolant inlet hose |
| 27 | Lower radiator hose |
| 28 | Engine oil cooler (If equipped) |
| 29 | Engine oil cooler inlet hose |
| 30 | Engine oil cooler outlet hose |
| 31 | Cabin heater coolant temperature sensor |
Description and Operation - Engine Cooling - System Operation and Component Description
System Operation
Engine coolant flows primarily from the engine to the radiator circuit
and back to the coolant pump. Coolant is sent from the coolant pump
through the engine block and cylinder heads...
