Ford Escape: Handles, Locks, Latches and Entry Systems / Removal and Installation - Front Door Lock Control Switch
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

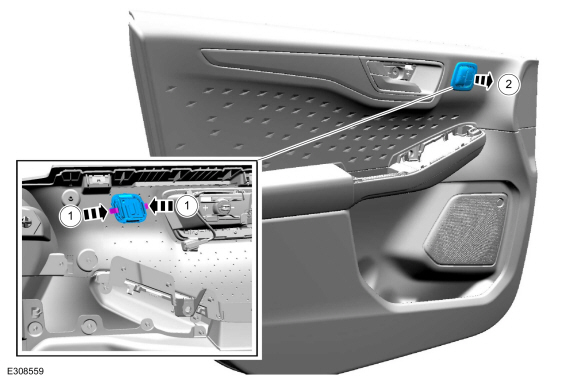

Remove the front door lock control switch.
-
Release the retaining clips.
-
Remove the front door lock control switch.
Installation
-
To install, reverse the removal procedure.
