Ford Escape 2020-2024 Service Manual / Chassis / Brake System / Front Disc Brake / Removal and Installation - Brake Pads

Ford Escape: Front Disc Brake / Removal and Installation - Brake Pads

Materials

Name Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound
XG-3-A
ESA-M1C200-A
ESE-M1C171-A

Motorcraft® Metal Brake Parts Cleaner
PM-4-A, PM-4-B, APM-4-C
-


Removal

  WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Vehicle with Electric Brake Booster

  1. Activate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).

All vehicles

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. Remove the brake caliper spring.

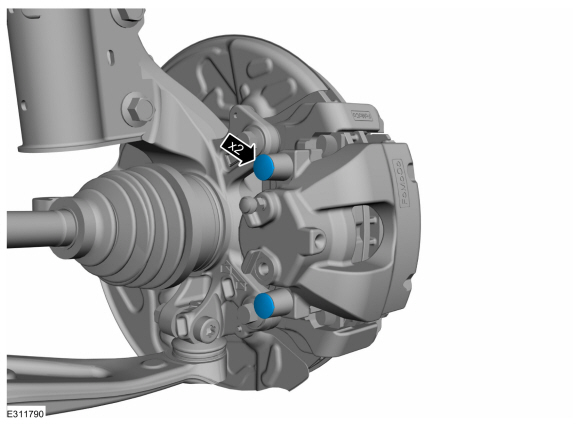

  1. Remove the caps.
  1. NOTICE: Make sure that no load is placed on the brake hose.

    NOTICE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

    Remove the brake caliper guide pin bolts and position aside the brake caliper.
    Torque: 21 lb.ft (28 Nm)

Vehicles without adhesive on brake pad insulator

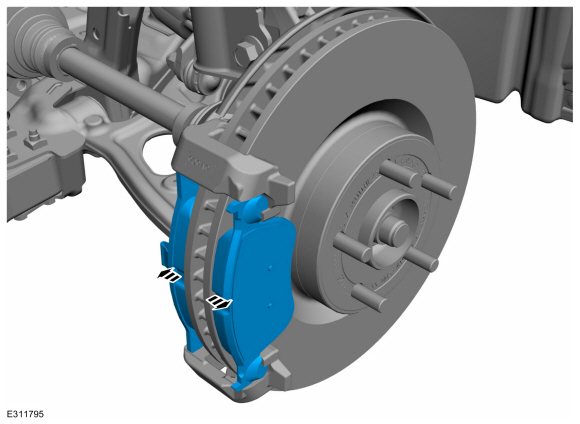

  1. Remove the brake pads.

Vehicles with adhesive on brake pad insulator

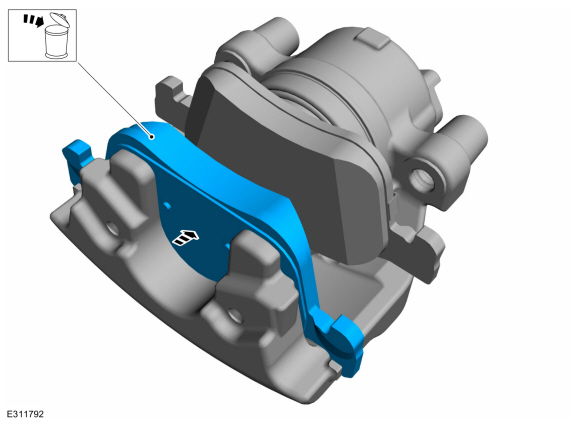

  1. NOTICE: Brake pads with adhesive on the insulator are one-time use only. When the brake pads are separated from the brake caliper, new brake pads must be installed to prevent brake noise and shudder.

    NOTICE: When installing the new brake pads make sure to remove the foil backing from the outboard brake pads. Once the foil backing is removed from the brake pads do not touch the adhesive on the backing.

    Separate the outboard brake pad from the brake caliper. Discard the brake pad.
  1. Remove the inboard brake pad.

All vehicles

  1. NOTICE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

    Use a C-clamp and a worn brake pad to compress the disc brake caliper pistons into the brake caliper bore.

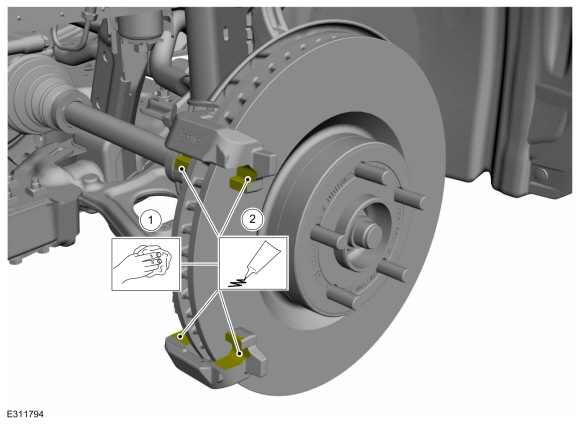

  1. Apply the specified grease.
    Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESA-M1C200-A) (ESE-M1C171-A)

Installation

Vehicles with adhesive on brake pad insulator

NOTICE: Brake pads with adhesive on the insulator are one-time use only. When the brake pads are separated from the brake caliper, new brake pads must be installed to prevent brake noise and shudder.

NOTICE: When installing the new brake pads make sure to remove the foil backing from the outboard brake pads. Once the foil backing is removed from the brake pads do not touch the adhesive on the backing.

NOTE: A new brake caliper piston will have a protective cover. Make sure to remove the cover before installing the brake caliper.

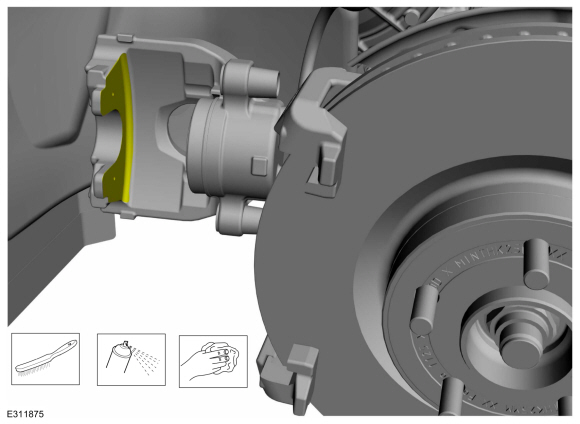

  1. Clean all residual pad adhesive from the finger area of the brake caliper. Make sure the finger area is free of grease and foreign material.
    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B, APM-4-C

All vehicles

  1. To install, reverse the removal procedure.

Vehicle with Electric Brake Booster

  1. Deactivate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).

All vehicles

  1. Apply the brake pedal several times to verify correct brake system operation.

Vehicles with adhesive on brake pad insulator

  1. Start the engine and apply the brake pedal firmly 5 times to assure the outboard brake pads are bonded to the caliper.
