Ford Escape: Instrument Panel and Console / Removal and Installation - Auxiliary Power Point
Special Tool(s) /
General Equipment
|
501-194 Remover, Power Point TKIT-2014D-ROW2 TKIT-2014D-FL_ROW |
Removal
-
Open the power point cover.
-

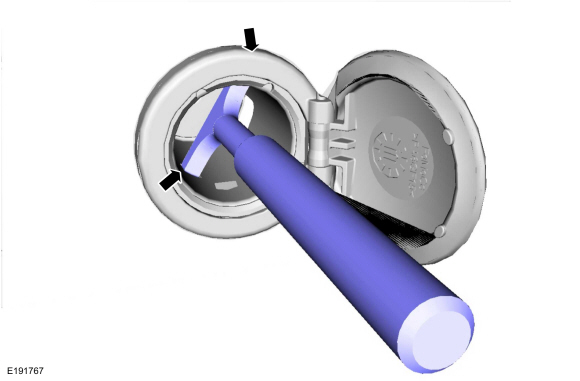

Position the power point extractor so that it engages in the adjacent slots in the power point socket.
Remove Suggested Tool: 501-194
Remover, Power Point.
-
-

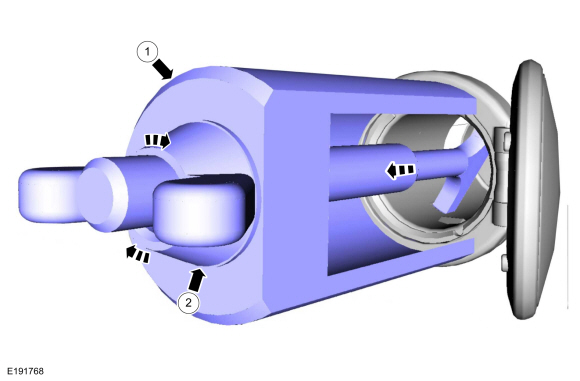

Install the receiver cup.
-
Install and tighten the wing nut.
Remove Suggested Tool: 501-194
Remover, Power Point.
-

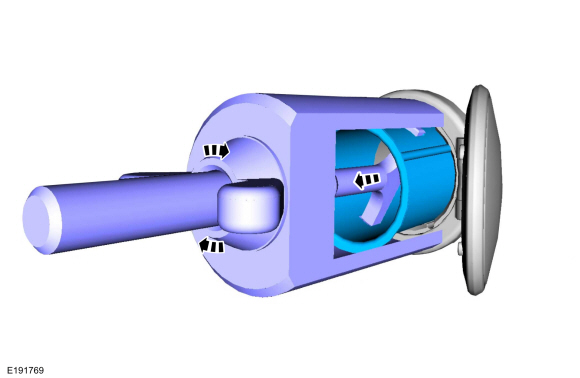

Tighten the wing nut to pull the power point socket out of the retainer.
Remove Suggested Tool: 501-194
Remover, Power Point.
-

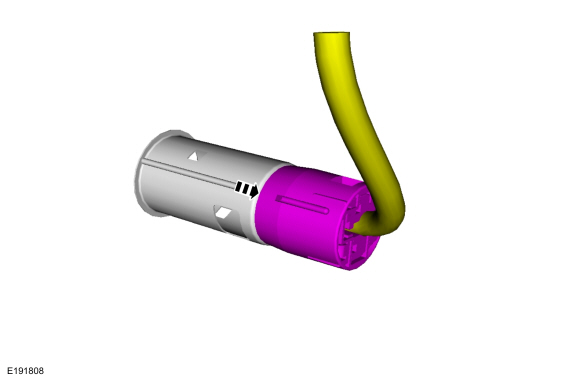

Disconnect the electrical connector.
Installation
-
Connect the electrical connector and push the new power point socket into the retainer.
