Ford Escape: Parking Aids / Parking Aid Indicators

Ford Escape. Parking Aid Indicators

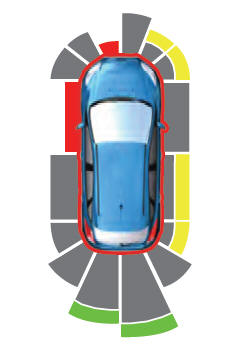

The system provides object distance indication through the information and entertainment display.

As the distance to the object decreases, the indicator waves and the lines move toward the vehicle icon.
If there is no object detected, the distance indicator lines are grey.

Visual indication remains on when your vehicle is in reverse (R). In any other gear, when you stop your vehicle, visual indication turns off after four seconds.

If the parking aids are not available, the side distance indicator lines do not display.
